Low Power Pulse Counter with SPI Interface

Project Code :TVMAFE720

Objective

Integrate SPI Interface for Communication • Provide a Serial Peripheral Interface (SPI) to allow external microcontrollers or systems to read the count value. The SPI interface should support basic read (and optionally write/reset) operations. • Ensure the SPI logic is low-power and does not dominate the overall power budget.

Abstract

Low-power digital systems are essential in modern embedded and Internet of Things (IoT) applications, where energy efficiency and reliable data communication are critical. Pulse counters are widely used to measure events such as sensor outputs, rotational speed, frequency, and energy consumption. This project presents the design and implementation of a low-power pulse counter integrated with a Serial Peripheral Interface (SPI) for efficient data transfer. The proposed system accurately counts input pulses while minimizing power consumption through optimized sequential logic and clock-gating techniques. The SPI interface enables reliable communication between the pulse counter and an external microcontroller or processor. The design achieves low power operation, scalability, and ease of integration, making it suitable for battery-powered and real-time embedded applications.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

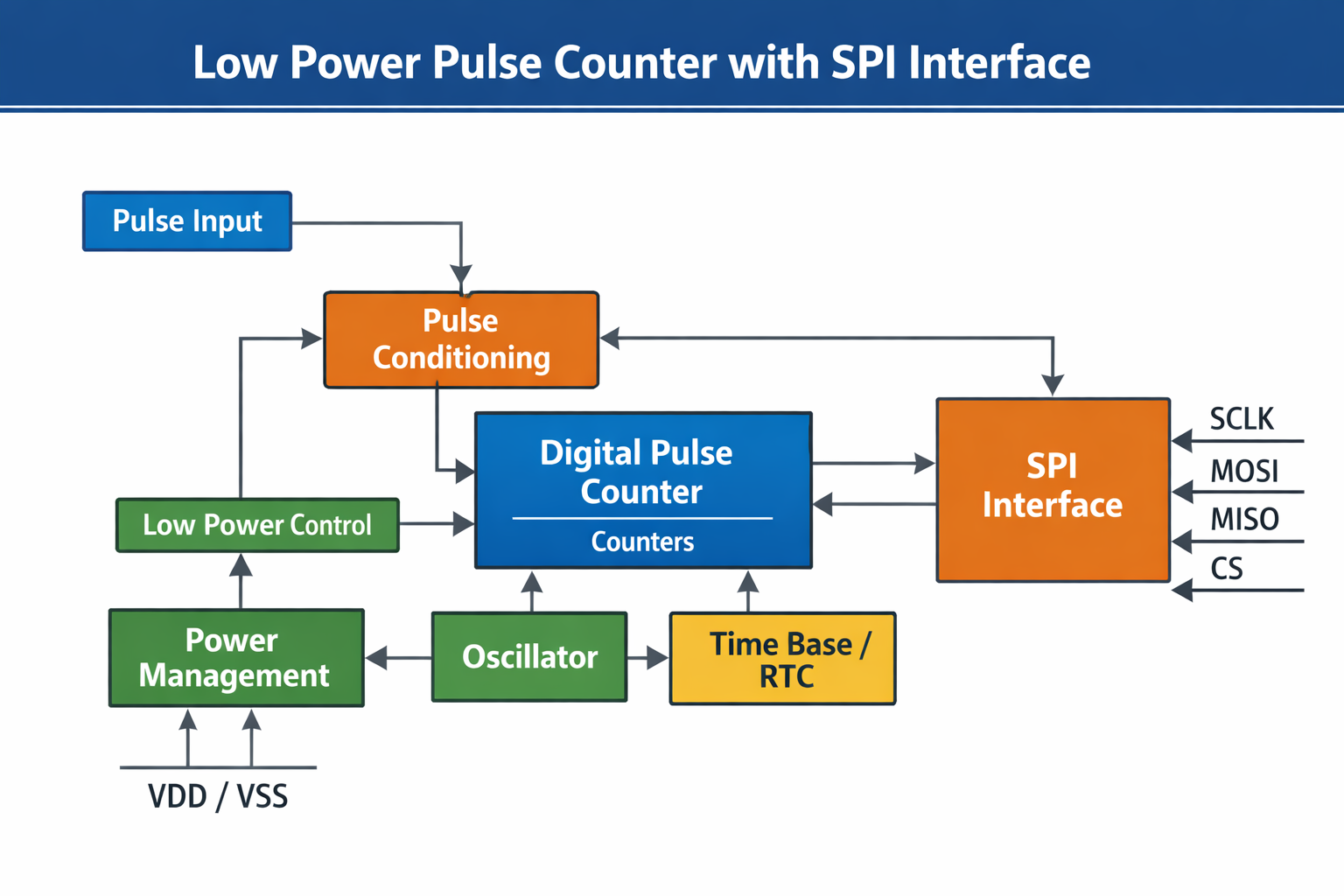

Block Diagram

Specifications

Software Requirements:

· Xilinx ISE14.7 Suite/Vivado2018.3 Tool.

· HDL: Verilog.

Hardware Requirements:

· Microsoft® Windows XP.

· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support.

· 512 MB RAM.

· 100 MB of available disk space.

Learning Outcomes

Xilinx Vivado Design Suite (2020.2 or later)
Verilog HDL for RTL design and implementation
Vivado Simulator (XSIM) for functional and timing verification
MATLAB (optional) for GPR data preprocessing, noise modeling, and result validation
