32-BIT FPGA BASED ALU EMPLOYING REVERSIBLE LOGIC

Project Code :TVMAFE627

Objective

Power efficiency: Reversible logic can help reduce power consumption by allowing for easier energy recovery

Abstract

The ALU, a crucial component in processors, serves arithmetic and logical functions, essential in digital system design. This study presents a 32-bit ALU designed in Verilog HDL using logical gates like AND and OR for each one-bit ALU circuit, accommodating 16 operations. This design operates faster and consumes less power than traditional ALU processors. Reversible logic, gaining importance for its power reduction capability, plays a significant role in low-power VLSI design. The paper introduces an ALU implementation based on reversible logic, comparing it to a conventional ALU architecture. The method's effectiveness is demonstrated through synthesis and simulation using Xilinx VIVADO.

Keywords:- Reversible gate, Verilog HDL, Feynman gate, Peres gate, Toffoli gate, Fredkin gate, Arithmetic Logic Unit.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

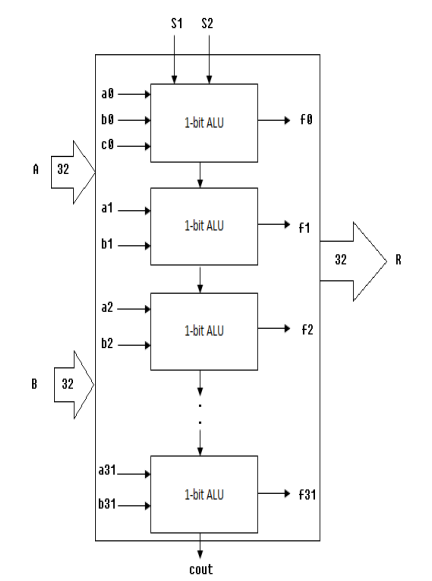

Block Diagram

Specifications

Software Requirements:

· Xilinx Vivado

· HDL: Verilog

Hardware Requirements:

· Microsoft® Windows XP

· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support

· 512 MB RAM

· 100 MB of available disk space

Learning Outcomes

Basics of Digital Electronics
VLSI design Flow
Introduction to Verilog Coding
Different modeling styles in Verilog

o Data Flow modeling

o Structural modeling

o Behavioral modeling

o Mixed level modeling

Introduction to Arithmetic circuits
Knowledge on types of approximate adder circuits
Different approximation techniques
Knowledge on approximate FA adder designs
Applications in real time

· Xilinx ISE 14.7/Xilinx Vivado for design and simulation

· Generation of Netlist

· Solution providing for real time problems

· Project Development Skills:

o Problem Analysis Skills

o Problem Solving Skills

o Logical Skills

o Designing Skills

o Testing Skills

o Debugging Skills

o Presentation Skills

o Thesis Writing Skills
