Z-Source Inverter
Objective
The main objective of this project is an impedance-source power converter and its control method for implementing dc-to-ac, ac-to-dc, ac-to-ac, and dc-to-dc power conversion.
Abstract
In this project, presents an impedance-source (or impedance-fed) power converter (abbreviated as Z-source converter) and its control method for implementing dc-to-ac, ac-to-dc, ac-to-ac, and dc-to-dc power conversion.
The Z-source converter employs a unique impedance network (or circuit) to couple the converter main circuit to the power source, thus providing unique Features that cannot be obtained in the traditional voltage-source (or voltage-fed) and current-source (or current-fed) converters where a capacitor and inductor are used, respectively. The Z-source converter overcomes the conceptual and theoretical barriers and limitations of the traditional voltage-source converter (abbreviated as V-source converter) and current-source converter (abbreviated as I-source converter) and provides a novel power conversion concept.
The Z-source concept can be applied to all dc-to-ac, ac-to-dc, ac-to-ac, and dc-to-dc power conversion. To describe the operating principle and control, this paper focuses on an example: a Z-source inverter for dc-ac power conversion needed in fuel cell applications. The performance of the proposed controller results evaluated by using Matlab/Simulink software.
Keywords: Fuel cell battery, inverter, voltage-source inverter, Z-Source inverter.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

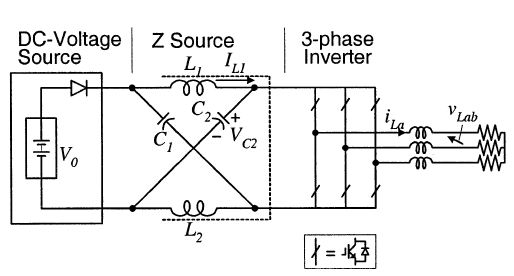

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to motors.
- Analysis of power converters.
- Introduction to controllers.
- We can learn about Clark’s transformation.
- Design of pi controller.
- Introduction to the types of filters.
- Introduction to closed loop, open loop control methods.
- Design of SVPWM technique.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
