Wireless Charging Constant Power Output System Based on LCC & S-S Self-Switching

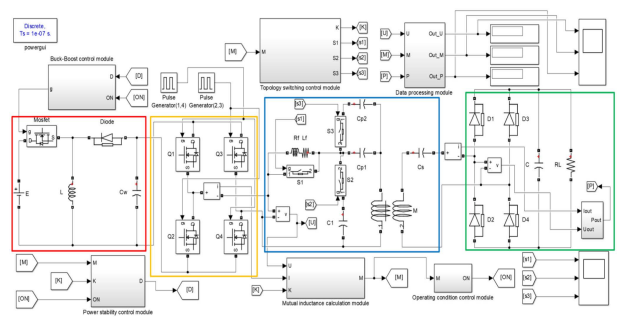

This paper proposes a Conventional wireless charging systems cause output power fluctuations during the offset process, and a single topology can cause power reduction or a large impact on the wireless charging network as the coupling mutual inductance changes. For this reason, in this paper, by combining LCC-S and S-S topologies, the high output characteristics of the S-S topology network in the low coupling state and the high output characteristics of the LCC-S topology network in the protection and high coupling in the very low coupling, the power output in the offset state is greatly maintained by combining with the voltage regulation circuit. In this paper, firstly, the theoretical derivation of the working principle of the designed topology is carried out, then the mutual inductance variation range generated by the offset state of the coil is found through finite element simulation, and the accuracy of the theoretical derivation is verified by building a constant power output model of the self-switching system using Matlab 2018a software.

Keywords: Wireless power transmission system, LCC-S topology, S-S topology, buck-boost network, constant power regulation.
