Vehicle black box system With IoT
Also Available Domains IOT|Arduino|PIC16F77A|ARM7|Raspberry pi
Objective
The main objective of this project is to detect accidents and gives an immediate alert to the hospitals and/or to the police by sending an email through an IoT platform. This system also consists of a voice module circuit which records audio when an accident is happened.
Abstract
Millions of people die due to the accidents. The main purpose of this project is to provide vehicle safety and a solution that automatically alert the driver to be cautious. In this system we continuously monitor the vehicle performance using sensors and the behavior of driver with the use of IoT Technology.
The Vehicle black box receives the information from various sensors like the vibration sensor, alcohol sensor. When the driver's alcohol consumption reaches maximum limit, the messages are sent to email along with location. If the accident occurs, by using GPS the vehicle location is traced and the information is sent to local hospital and police through the email.
With the IoT Technology, this location is always traced in the cloud platform service. If the accident occurs, then the location is automatically send to email and also the data will upload through an IoT platform.
Keywords: IoT, Raspberry Pi, audio recording, accident detection.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

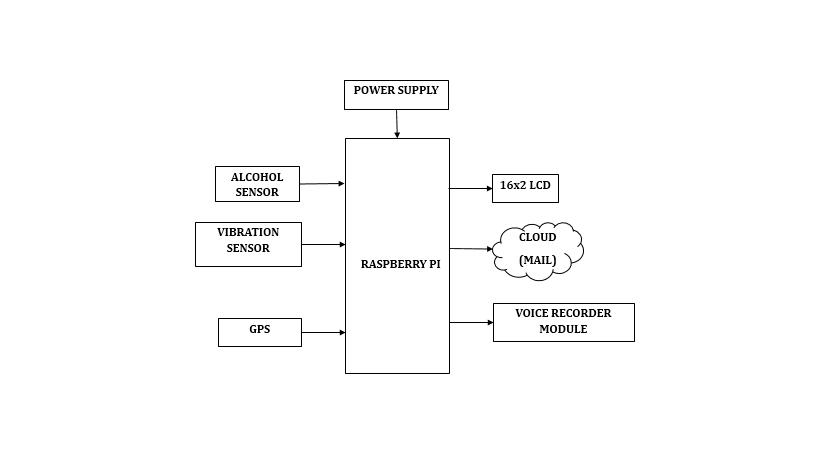

Block Diagram
Specifications
Hardware Requirements:
- Raspberry Pi
- Alcohol sensor
- Vibration sensor
- GPS
- 5V Adapter
- Voice recorder module
- 16x2 LCD
- Connecting wires
Software Requirements:
- NOOBS Software
- Python3 IDE
- VNC Viewer
- Fritzing
- SMTP Server
Learning Outcomes
- Raspberry Pi Pin diagram and Architecture
- How to install NOOBS Software
- Setting up and Installation procedures for Raspberry Pi
- How to connect Raspberry Pi through VNC viewer?
- Introduction to Python3 IDE
- Commands in Python
- Basic coding in Python
- How to interface alcohol sensor and vibration sensor with Raspberry Pi?
- How to interface 16x2 LCD with Raspberry Pi?
- Introduction to Serial Communication
- How to interface GPS with Raspberry Pi?
- How interface voice module circuit with Raspberry Pi?
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools. ,
- Solution providing for real time problems,
- Working with team/ individual,
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
