TIME TO DIGITAL CONVERTERS

Project Code :TVMAFE792

Objective

Abstract

Time-to-Digital Converters (TDCs) are essential components in high-precision digital systems for accurately measuring short time intervals between events. This project presents the design and implementation of a two-level TDC architecture that com bines both coarse and fine time measurement techniques to achieve improved resolution and dynamic range. The coarse measurement is implemented using a counter-based TDC that counts clock cycles between start and stop signals, offering simplicity and a wide measurement range but limited resolution. To overcome this limitation, a fine measurement stage is introduced using a buffer delay line, which subdivides a single clock period into smaller intervals based on known logic gate delays. By integrating both methods, the proposed TDC achieves a balance between high timing resolution and broad range, making it suitable for applications such as time-of-flight measurements, digital communication systems, and precision instrumentation. This report outlines the design methodology, simulation results, and performance evaluation focusing on resolution, linearity, and timing accuracy.

Keywords—component, formatting, style, styling, insert

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

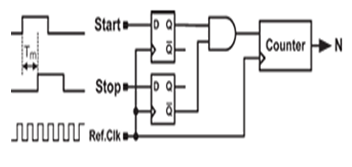

Block Diagram

Specifications

Specifications:

Software Requirements:

· Xilinx Vivado Tool

· HDL: Verilog

Hardware Requirements:

· Microsoft® Windows XP,

· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support

· 512 MB RAM

· 100 MB of available disk space

Learning Outcomes

Basics of Digital Electronics
FPGA design Flow
Introduction to Verilog Coding
Different modeling styles in Verilog

o Data Flow modeling

o Structural modeling

o Behavioral modeling

o Mixed level modeling

Applications in real time

· Xilinx Vivado for design and simulation

· Generation of Netlist

· Solution providing for real time problems

· Project Development Skills:

o Problem Analysis Skills

o Problem Solving Skills

o Logical Skills

o Designing Skills

o Testing Skills

o Debugging Skills

o Presentation Skills

o Thesis Writing Skills
