Three Phase Fault Analysis with Auto Reset for Temporary Fault and Trip for Permanent Fault
Objective
The main theme of this project is to find the faults that was occurring in the three phase transmission lines with the help of arduino and displaying the same on the LCD screen.
Abstract
This project develop an automatic tripping mechanism for the three phase supply system. The project output reset automatically after a brief interruption in the event temporary fault while it remains in tripped condition in case of permanent fault. The major advantage of the project is, it is not only save the appliance but it will also show the type of fault that has been occurred in the system so it will be easy for the operator to solve the problem easily. It will also check whether the fault is permanent or temporary and displays the same on the LCD.
Keywords: Arduino Uno, GSM, Monostable multivibrator circuit, Astable multivibrator circuit, LCD.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

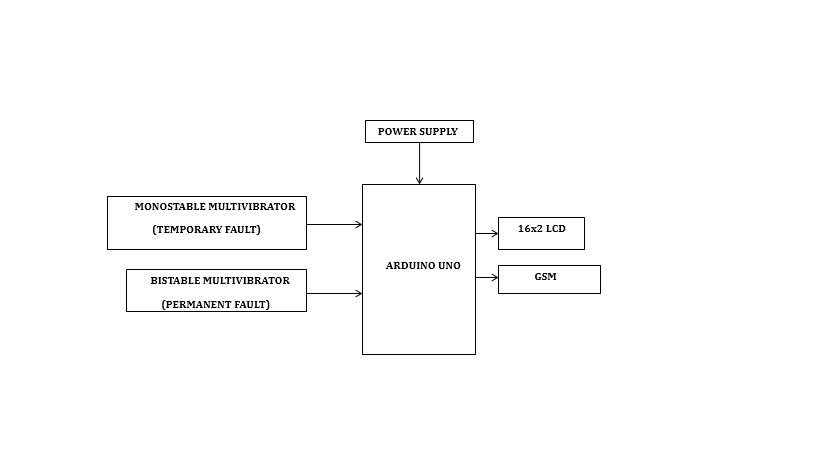

Block Diagram
Specifications
Hardware Requirements:
- Arduino Uno
- Monostable multivibrator circuit
- Astable multivibrator circuit
- 16x2 LCD
- GSM
- Power supply
- Jumper wires
Software Requirements:
- Arduino IDE
- Embedded C
- Fritzing
Learning Outcomes
- Arduino Uno Pin diagram and Architecture
- How to install Arduino IDE Software
- Setting up and Installation procedures for arduino UNO
- Introduction to Arduino IDE
- Commands in Arduino
- Basic coding in Embedded C
- Introduction to serial communication
- Working of GSM module
- Interface of GSM module with arduino Uno
- Working of 16x2 LCD
- Interface of 16x2 LCD with arduino Uno
- Working of Monostable multivibrator circuit
- Interface of monostable multivibrator circuit with arduino Uno
- Working of astable multivibrator circuit
- Interface of astable multivibrator circuit with arduino Uno
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
