Standalone Single Stage PV fed Reduced Switch Inverter Based PMSM for Water Pumping Application
Objective
The main objective of this project is to reduce switch inverter topology for PV powered PMSM driven water pumping systems. This topology has lower switching losses
Abstract
In this project, to pump the water a standalone single stage PV fed PMSM drive is proposed. The proposed system aims at reducing the switching losses and overall cost by using reduced switch inverter (RSI). The proposed system comprises of a PMSM drive, fed by PV source through an inverter employing reduced number of switches.
The inverter uses only four switches whereas the conventional VSI utilizes six switches. Field oriented control scheme is employed to control the PMSM drive. Perturb and Observe (P&O) MPPT technique is used to generate a speed reference to PMSM drive. Simulation studies for the proposed PV fed PMSM driven water pumping system are performed using MATLAB/Simulink platform.
Keywords: PMSM, MPPT, Perturb and Observe, Reduced Switch inverter, water pumping.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

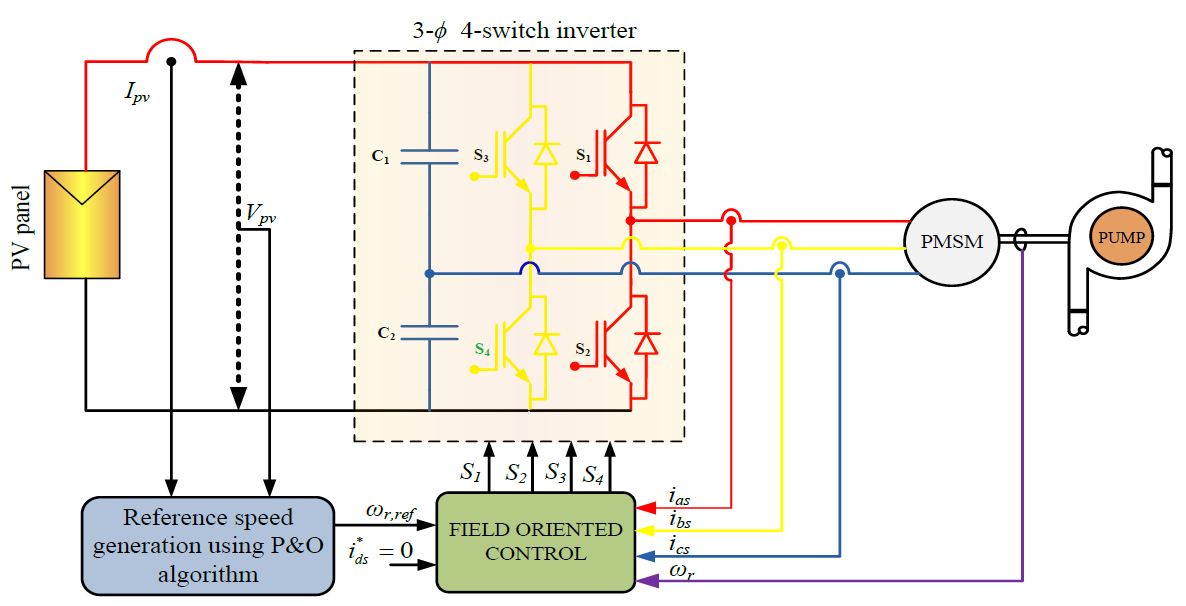

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to PMSM.
- Study of different motors.
- Design of PMSM.
- Introduction to electrical drives.
- Analysis of power converters.
- Modelling of Field oriented control.
- Introduction to controller.
- We can learn about Synchronous reference frame theory.
- We can learn about Clark’s transformation.
- Design of PI controller.
- Introduction to the types of filters.
- Introduction to closed loop, open loop control methods.
- Introduction to PV system.
- Introduction to MPPT techniques.
- Introduction and design of two arm PWM Technique.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
