Solar Power Monitoring Using IoT
Abstract
This project aims to develop a measurement of solar energy using Arduino Board technology. In this project, we are measuring the parameters like voltage and current and power. These parameters as the input value for the Arduino and the output was display at the Liquid Crystal Display (LCD) screen. The LCD screen display output of voltage, power and current value. The purpose of Arduino to convert the analog input of parameter to the digital output and display via LCD screen and is uploaded to cloud server using NodeMCU.
Keywords: Arduino, Current sensor, Voltage sensor, Battery, Solar Panel, Node MCU
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

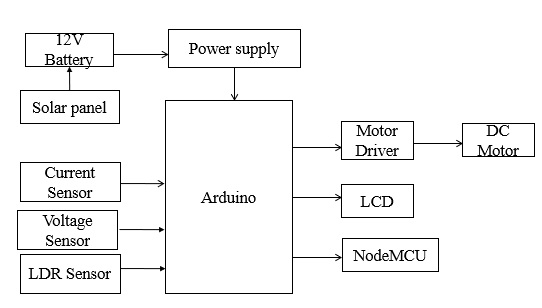

Block Diagram
Specifications
Hardware Requirements:
- Arduino
- LDR sensor-2
- Motor Driver
- Dc motor
- Current sensor
- Voltage sensor
- Power supply
- Solar panel
- Adapter 12v
- Lcd
Software Requirements:
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino and NodeMCU pin diagram and architecture.
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of LDR sensor
- Working of Current Sensor
- Working of Voltage Sensor
- Working of Motor Driver
- Working of GSM
- Working of LCD
- Working of DC Motors
- How to interface Motor Driver with Arduino uno?
- How to interface LDR sensor with Arduino uno?
- How to interface Current Sensor with Arduino uno?
- How to interface Voltage Sensor with Arduino uno?
- How to interface Motor Driver with Arduino uno?
- How to interface DC Motors with Arduino uno?
- How to interface LCD with Arduino uno?
- How to send data to NodeMCU from Arduino uno?
- About Project Development Life Cycle:
- Planning and Requirement Gathering ((Hardware components, etc.,)
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Testing skills
- presentation skills
- Thesis writing skills
