Smart water controller in metro water supply lines
Also Available Domains IOT
Objective
The main objective of the project is to avoid water leakage problem in water supply networks as unwanted water leakage due to leaky pipe lines and beneath the underground pipelines is always pertaining in drinking water supply networks.
Abstract
Asset monitoring, specifically infrastructure monitoring such as water distribution pipelines, is becoming increasingly critical for utility owners who face new challenges due to an aging network. In the UK alone, during the period of 2009–2010, approximately 3281 mega liters (106) of water were wasted due to failure or leaks in water pipelines. Various techniques can be used for the monitoring of water distribution networks.
A novel pressure sensing method is investigated for its performance and capabilities by both laboratory and field trials. The sensors were capable of measuring pressure changes due to leaks. These pressure profiles can also be used to locate the leaks.
Pipeline systems are responsible for transporting vital materials such as water, oil and gas. Any leakage in the pipe can cause major financial losses and possible environmental damages. Currently, buried pipelines are only monitored at key points, which can be spaced several kilometers apart. A system with a higher spatial resolution would provide operators with a better understanding of their network.
Keywords: Flow sensor, Arduino Uno, solenoid value, 16x2 LCD, GSM.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

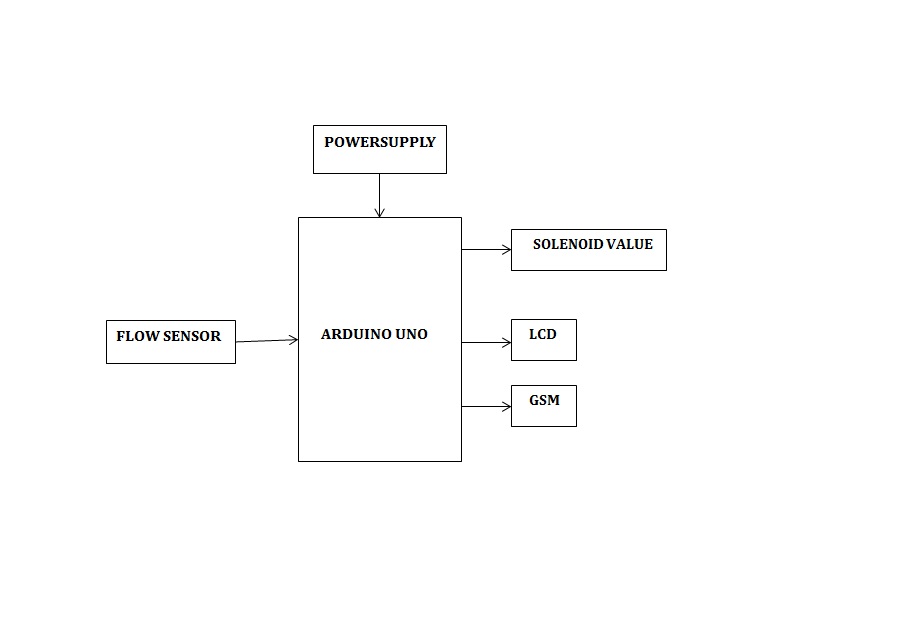

Block Diagram
Specifications
Hardware Requirements:
- Arduino Uno
- Flow Sensor
- 16x2 LCD
- GSM
- Solenoid Value
- Power supply
- Connecting wires
Software Requirements:
- Arduino IDE
- Embedded C
- Proteus
Learning Outcomes
- Arduino Uno Pin diagram and Architecture
- Setting up and installation procedure for Arduino
- Basic coding in Arduino
- How to install libraries
- Basic coding in embedded C
- Working of flow sensor
- How to interface flow sensor with Arduino
- Working of solenoid
- How to interface solenoid with Arduino
- Working of GSM
- Interface of GSM with Arduino
- Working of 16x2 LCD
- Interface LCD with Arduino
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
