Smart Meter for Power Factor Enhancement in Real Time
Objective
The main objective of this project is to design to minimize penalty for industrial units by using automatic power factor correction unit.
Abstract
The project is designed to minimize penalty for industrial units by using automatic power factor correction unit. Power factor is defined as the ratio of real power to apparent power. This definition is often mathematically represented as KW/KVA, where the numerator is the active (real) power and the denominator is the (active + reactive) or apparent power. Reactive power is the non-working power generated by the magnetic and inductive loads, to generate magnetic flux. The increase in reactive power increases the apparent power, so the power factor also decreases. Having low power factor, the industry needs more energy to meet its demand, so the efficiency decreases.
Keywords: Arduino Uno, Current sensor, relay, LCD
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

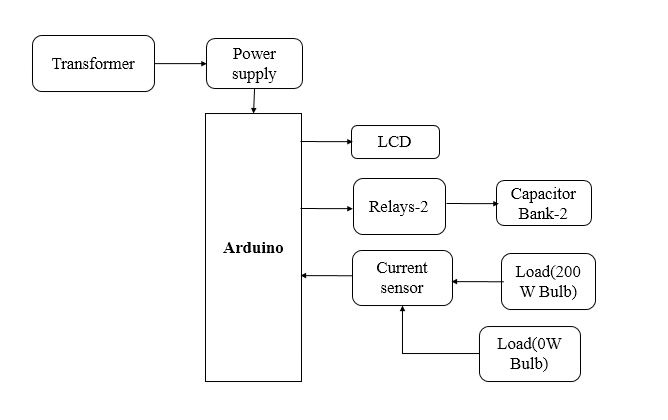

Block Diagram
Specifications
Hardware Requirements:
- Arduino uno
- Current sensor
- Relay
- LCD
- Power supply Board
- Transformer
- Capacitor Bank
- Bulbs
Software Requirements:
- Arduino IDE
- Fritzing
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Current sensor
- Interface Current sensor with Arduino?
- Working of Relay
- Interface Relay with Arduino?
- Working of LCD
- Interface LCD with Arduino?
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
