Single Stage PV Array Fed Speed Sensorless Vector Control of Induction Motor Drive for Water Pumping
Objective
The main objective of this project is to control the induction motor for water pumping using Vector control and extract the maximum power from the solar array.
Abstract
In this project, to control the induction motor for water pumping system ,a Sensorless Vector Control is proposed. Which is superior to conventional motor drive. The speed is estimated through estimated stator flux.
The proposed system includes solar Photovoltaic (PV) array, a three-phase Voltage Source Inverter (VSI) and a motor-pump assembly. An Incremental Conductance (InC) based MPPT (Maximum Power Point Tracking) algorithm is used to harness maximum power from a PV array.
The smooth starting of the motor is attained by vector control of an induction motor. The desired configuration is designed and simulated in MATLAB/Simulink.
Keywords: Speed Sensorless Control, Stator Field-Oriented Vector Control, Photovoltaic (PV), InC MPPT Algorithm, Induction Motor Drive (IMD), Water Pump.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

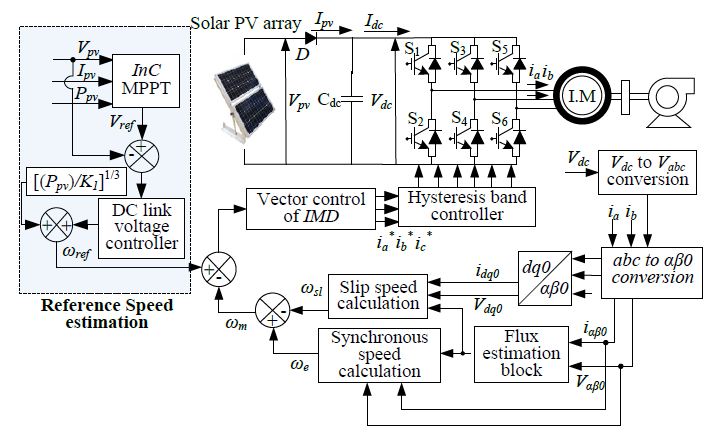

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to Renewable energy systems.
- Introduction to Motor Drives.
- Introduction to maximum power point tracking technique.
- Design of solar PV system.
- Design of Induction Motor.
- Design of ICM algorithm.
- Design of Hysteresis band controller.
- Design of Phase Lock Loop (PLL).
- Introduction to Pulse Width Modulation (PWM),
- Introduction to open loop and closed loop control system
- Introduction to Voltage Source Converters (VSC)
- Introduction to Synchronous Reference Frame (SRF).
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
