Rotor Flux Position Correction And Parameters Estimation On Sensorless Multiple Induction Motors Drives
Abstract
Rotor Flux Position Correction and Parameters Estimation on Sensorless Multiple Induction Motors Drives.
Abstract:
Multiple-motor fed by multiple-converter systems feature a set of electric motor drives sharing the load through a common mechanical coupling. Such a coupling is exploited in this paper to build up a sensor-less field oriented control, based on a quite common back-EMF technique to estimate the rotor flux angular position and an original approach to correct estimation errors. The technique is based on the injection of a suitable, very low frequency, sinusoidal signal on the current reference of one of the motor drives. If the estimated rotor flux position is correct, the drive output torque does not show variations. Differently, a torque ripple is generated at the frequency of the injected signal, whose effects on the system speed are easily compensated by the main speed controller
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

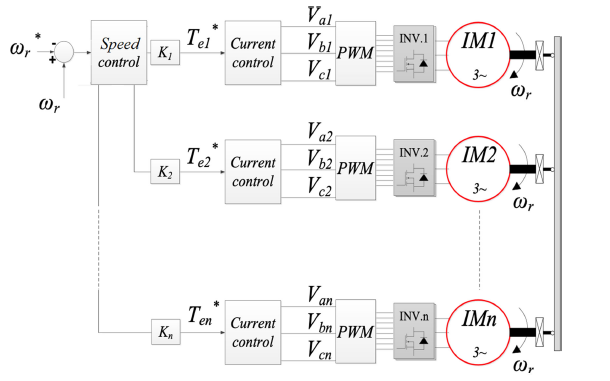

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
