Raspberry Pi Based Covid -19 Ventilator and Health Monitoring Device

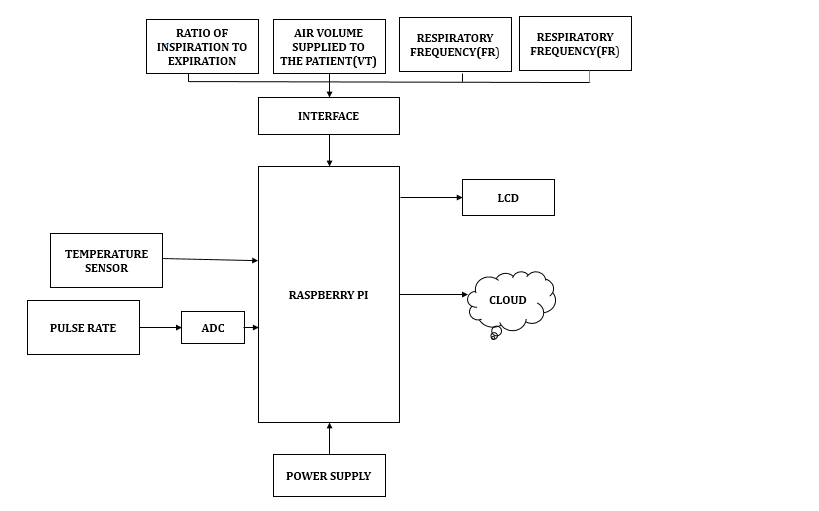

The pandemic caused by Severe Acute Respiratory Syndrome Coronavirus has affected countries all across the world, heavily burdening the medical infrastructure with the growing number of patients affected by the coronavirus disease (COVID-19). With ventilators in limited supply, this public health emergency highlights the need for safe, fast, reliable, and economical alternatives to high-end commercial devices and has prompted the development of easy-to-use and mass-producible ventilators. Here, we detail the design of the Emergency Ventilator System. The device performs ventilation through mechanical compression of manual resuscitators and includes control electronics and an external data visualization and monitoring unit. We demonstrate its suitability for open loop, pressure- and volume-controlled ventilation. The system has not undergone clinical testing and has not been approved for use as a medical device. The project documentation needed to reproduce the prototype is freely available and will contribute to the development of open source ventilation and health monitoring systems.

Keywords: mechanical ventilation, pulse rate sensor, ADC, raspberry pi
