Railway Safety Robot for Real-Time Track Error Detection Using GPS
Objective
The objective is to design a railway safety robot that uses GPS to detect track errors or damages in real time, ensuring timely maintenance and improved railway safety.
Abstract
This project presents a railway safety robot using Arduino Uno, a robotic chassis, two IR sensors, an ultrasonic sensor, GPS module, red LED, and buzzer. The robot travels along railway tracks and continuously monitors track conditions. The IR sensors detect track faults such as cracks or misalignments, while the ultrasonic sensor identifies obstacles on the track. When a fault or obstacle is detected, the system activates the red LED and buzzer for immediate alerts. The GPS module records the location of the detected issue, helping maintenance teams quickly locate and resolve problems. The system provides a low-cost and automated solution for improving railway safety and track inspection.
Keywords: Arduino Uno, Railway Safety Robot, Track Fault Detection, GPS, IR Sensor, Ultrasonic Sensor.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

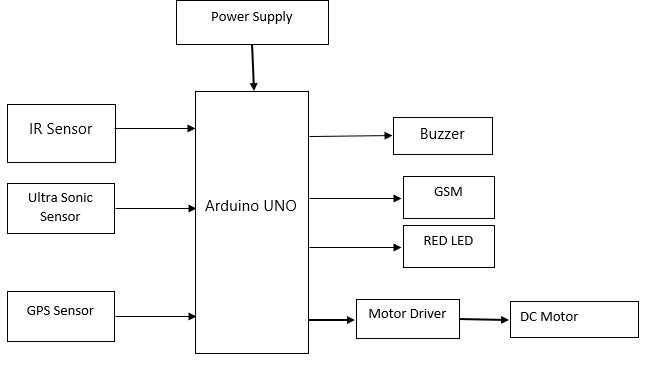

Block Diagram
Specifications
Hardware components:
- Arduino UNO
- IR Sensor
- Ultrasonic Sensor
- Buzzer
- Red LED
- GSM
- GPS
- connectors-10
Software requirements:
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino UNO / setup software
- Setting up and installation procedure for Arduino UNO
- Introduction to Arduino UNO environment / development setup Basic programming in Arduino UNO (Embedded C)
- Basics of Embedded programming using Arduino UNO
- Basics of IoT platforms
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software, tools, hardware components, etc.)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the project and output testing
- Practical exposure to:
- Hardware and software tools
- Solution providing for real-time problems
- Working with team/individual
- Work on creative ideas
- Skills developed:
- Project development skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginative skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
