Power quality improvement with D-STATCOM using combined PR and Comb filter- Controller
Objective
The Main objective of this project is to maintain power quality in distribution system with the help of D-STATCOM
Abstract
In this project, Distribution Static Compensator (DSTATCOM) has been presented with a combination of proportional resonant (PR)-controller and comb filter. The proposed controller reduces the complexity in the tuning of the resonant controllers and also provides better current harmonics response.
Multiple harmonic compensations in the grid current have been achieved by implementing a comb filter, which does not require tuning for individual harmonics compensation, unlike PR-controller. Two different forms of comb filters, such as feedforward and feedback form are implemented and results are compared in this paper.
The D-STATCOM topology used a constant switching technique i.e. the sinusoidal pulse width modulation (SPWM) switching technique for reactive power and harmonic compensation. MATLAB/Simulink results are presented to validate the theoretical claims.
Keywords: comb filter, D-STATCOM, proportional resonant (PR) controller, voltage source inverter (VSI).
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

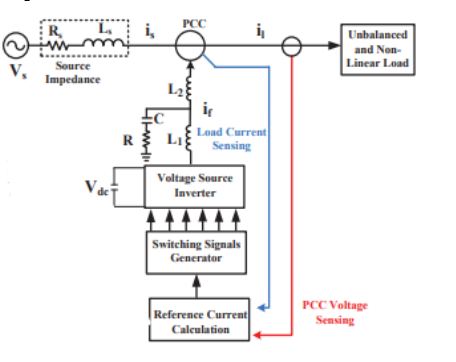

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
