Power Quality Improvement Using Dynamic Voltage Restorer
Objective
Main objective of this project is to mitigate the problem of distorted voltage due to sags, swell or harmonics.
Abstract
In this project, a Dynamic Voltage Restorer (DVR) is used to improve the power quality. Power Quality is an essential concern in the modern power system that can affect consumers and utility. The integration of renewable energy sources, smart grid systems and extensive use of power electronics equipment caused myriad problems in the modern electric power system. Current and voltage harmonics, voltage sag, and swell can damage the sensitive equipment.
These devices are susceptible to input voltage variations created by interference with other parts of the system. Dynamic Voltage Restorer (DVR) is a potential Distribution Flexible AC Transmission System (D-FACTS) device widely adopted to surmount the problems of non-standard voltage, current, or frequency in the distribution grid. It injects voltages in the distribution line to maintain the voltage profile and assures constant load voltage.
Keywords: Dynamic Voltage Restorer (DVR), Energy Storage Unit, 3-phase Grid.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

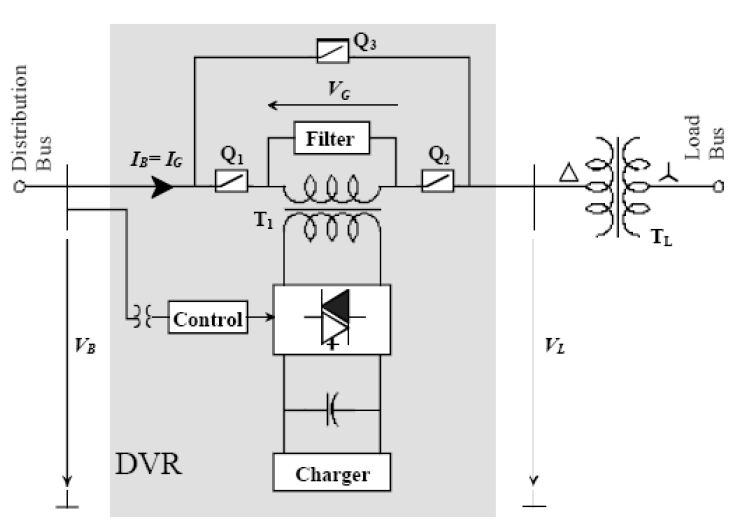

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to Distribution Generation Systems
- Introduction to Renewable Energy Sources
- Introduction to Energy Storage Devices
- Introduction to Wind Power System
- Introduction to FACTS devices
- Introduction to Power Grids
- Introduction to Dynamic Voltage restorer (DVR)
- Introduction to power electronic devices.
- Introduction to Total Harmonic Distortion
- Introduction to Power Quality Issues
- Introduction to Voltage Sags and Swells
- Introduction to Gate Turn-off Thyristor (GTO), Insulated Gate Bipolar Transistor (IGBT).
- Introduction to Voltage Injection Transformer
- Introduction to Pulse Width Modulation (PWM),
- Introduction to Low Pass Filter
- Design of DVR
- Introduction to Types of Batteries.
- Introduction to Battery Energy Storage Systems.
- Introduction to open loop and closed loop control system
- Introduction to Voltage Stability
- Introduction to Generator Bus and Load Bus
- Introduction to Voltage Source Converters (VSC)
- We can learn about different types of loads.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
