Pole Reduction Concept for Control of SyRM Based Solar PV Water Pumping System for Improved Performance
Objective
The main objective of this project is to improve the transient behavior of overall control under dynamic conditions such as varying solar radiation and improve fidelity.
Abstract
In this project, an improved control for SyRM based Photovoltaic (PV) water pumping system is proposed. The solar water pump drive involves two stages of power conversion. The reference quadrature axis current of FOC is estimated from available PV array power that is being continuously tracked for maximum power point. This eliminates the requirement of an additional speed controller. This improves the transient behavior of overall control under dynamic conditions such as varying solar radiation.
A pole is eliminated from overall characteristic equation of open loop DC link voltage control transfer function. As a result, a single proportional integrator (PI) controller satisfactorily controls whole pumping system. The system is much easier to tune and by default immune to ageing and variation in pump’s constant. This improves fidelity and reduces overall cost of the system. The proposed method is modelled and simulated in MATLAB/SIMULINK.
Keywords: Energy Conversion, Feed-Forward, Pole Reduction Synchronous Reluctance Motor, Solar PV Generation.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

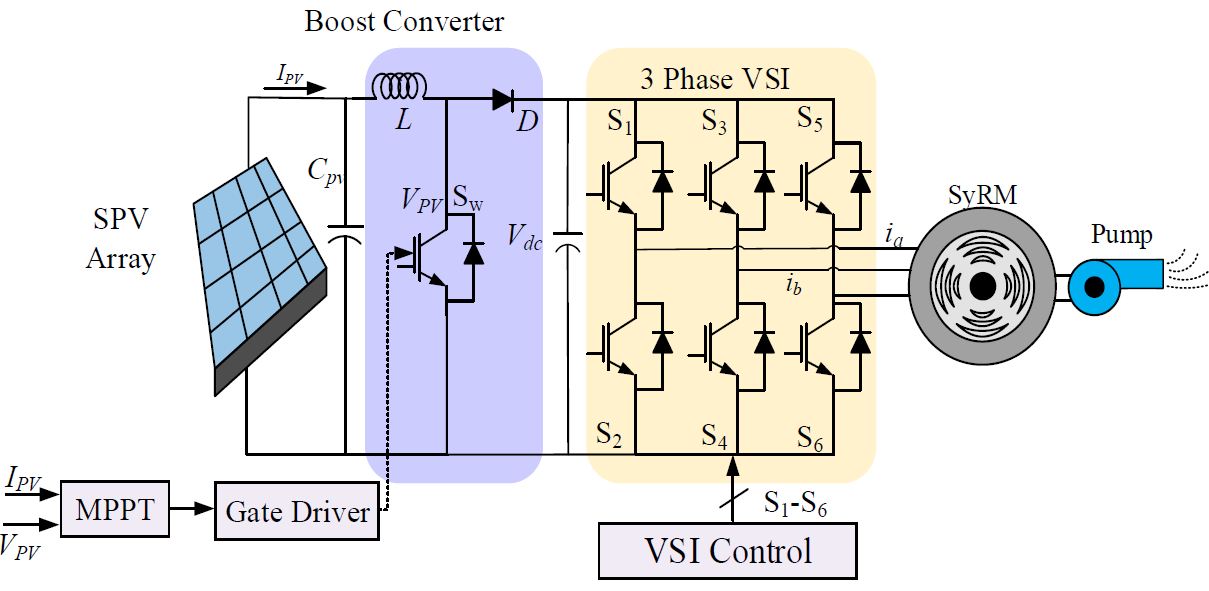

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to motors.
- Study of permanent magnet synchronous Motor.
- Study of synchronous reluctance motor.
- Design of synchronous reluctance Motor.
- Design of voltage source converter.
- Introduction to electrical drives.
- Analysis of power converters.
- Introduction to controllers.
- We can learn about synchronous reference frame theory.
- We can learn about Clark’s transformation.
- Design of pi controller.
- Introduction to the types of filters.
- Introduction to closed loop, open loop control methods.
- Study of PWM techniques.
- Design of Quadrature Axis Current Control.
- Design of DC link control loop.
- Design of Current Control loop.
- Design of field-oriented control.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
