Performance Analysis of Solar PV array and Battery Integrated Unified Power Quality Conditioner for Microgrid Systems
Objective
The main objective of this project is to improve the power quality at the load side and supply side. And also regulate load voltages while maintaining grid current sinusoidal and the power factor close to unity.
Abstract
In this project, a methodology for implementation of an automated transition of a solar PV array and Battery integrated Unified Power Quality Conditioner (PV-BUPQC) between standalone and grid connected modes of operation is presented and analyzed. This system consists of a shunt and series active filters connected back-to-back with a common DC-link. The system addresses the issue of the integrating power quality improvement along with the generation of clean energy. Moreover, due to the automated transition, the critical loads have continuous power supply irrespective of grid availability.
The key challenges addressed are implementation of automated transition in a PV-B-UPQC system with minimal disturbance to the local loads. The system operation is validated through simulation under a number of dynamic conditions such as automated transition, supply voltage variations, unavailability of the grid, variation in solar power generation, load variation, etc., which are typically encountered in a modern distribution network.
Keywords: Unified Power Quality Conditioner (UPQC), Solar PV array, Battery.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

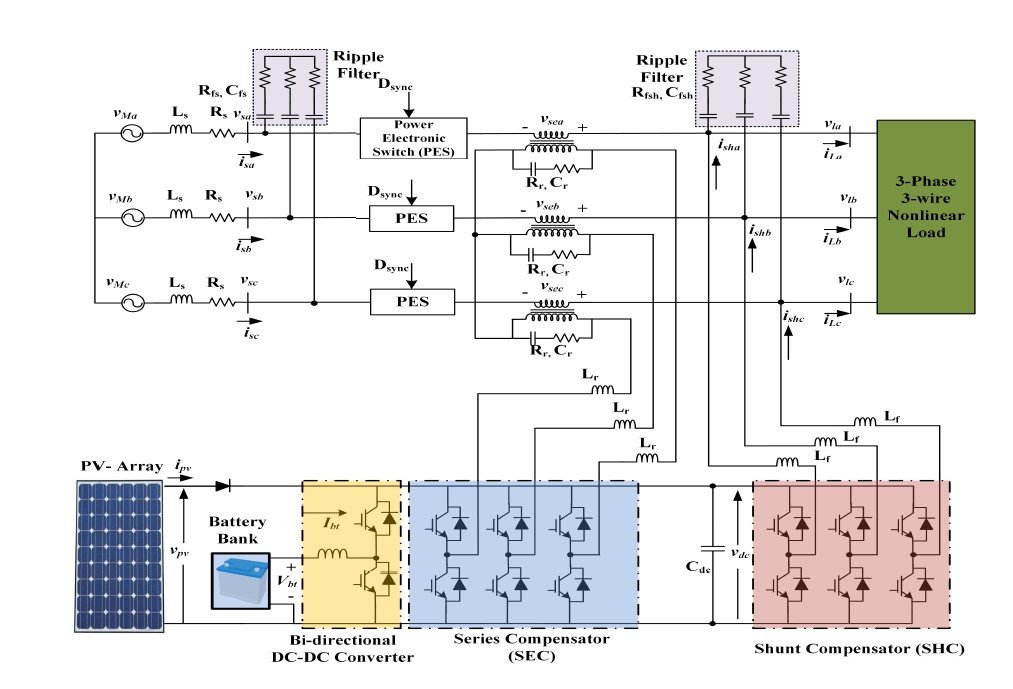

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to solar power generation
- Introduction to Matlab/Simulink software
- Introduction to power electronics converters
- Introduction to phase locked loop (PLL)
- Introduction to Hysteresis Current Controller
- Design of PLL
- Design of battery energy storage system
- Design of solar PV system
- Design of MPPT controller
- Design of DC – DC boost converter
- Design of bidirectional DC -DC converter
- Design of Voltage source converter
- Design of Series Compensator
- Design of Shunt Compensator
- Design of Ripple Filter
- How BES works?
- We can learn about the generation of gate pulses to the series compensator.
- We can learn about the generation of gate pulses to the shunt compensator.
- We can learn about the bidirectional DC -DC converter operation.
- We can learn about nonlinear loads.
- We can learn about Power electronic Switch.
- We can learn about Generation of Phase Angle.
- We can learn about the difference between both grid connected and islanded modes.
- Design of Hysteresis Current Controller.
- Introduction to controllers.
- Design of PI controller.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
