PC Based Electrical Load Control
Abstract
The complexity of power distribution network is increasing day by day with rapid increase in power demand. For monitoring and control of this complex power network, application of smart grid technologies is essential. These technologies can also improve the overall system reliability and system security. A two-way communication network is the main requirement for optimal operation of a smart grid through a two-way communication channel. This project implements a Smart Grid architecture implemented with the help of XCTU. The quest for sustainable energy models is the main factor driving research on smart grid technology. This Smart Grid using XCTU is to provide the reliable power supplies to the consumers.
Keywords: Arduino uno, current sensor, relay, bulb, Zigbee pair, potentiometer, LCD, power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

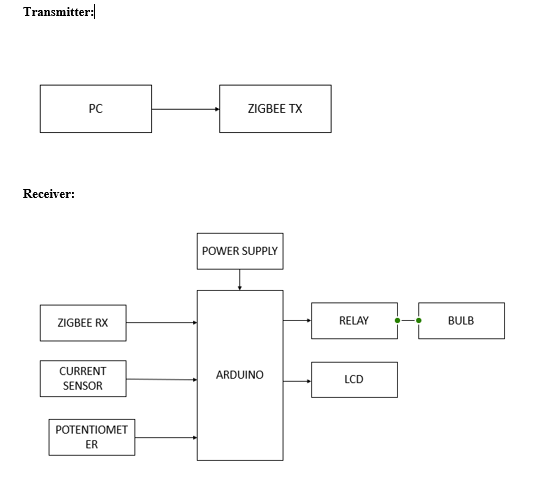

Block Diagram
Specifications
Hardware Requirements:
- Arduino uno
- Zigbee pair
- Current sensor
- potentiometer
- Relay
- Bulb
- LCD
- power supply
Software Requirements:
- Arduino IDE
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Current sensor
- Interface Current sensor with Arduino?
- Working of Potentiometer
- Interface Potentiometer with Arduino?
- Working of LCD
- Interface LCD with Arduino?
- Working of Relay
- Interface Relay with Arduino?
- Working of Bulb
- Interface Bulb with Arduino?
- Working of Zigbee
- Interface Zigbee with Arduino?
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
