Password Based Circuit Breaker Using NodeMCU
Abstract
The password based circuit breaker control system is a system that access only specified password to control the circuit breaker. Here, there is also a provision of changing the password. The system is fully controlled by Node MCU board. An Adafruit keypad is interfaced to the microcontroller to enter the password while a relay driver IC is used to switch ON / OFF the loads through relays. The complete circuit is built with on board power supply. The power supply consists of a step down transformer 230/12V, which steps down the voltage to 12V AC. This is converted to DC using a Bridge rectifier. The ripples are removed using a capacitive filter and it is then regulated to +5V using a voltage regulator which is required for the operation of the microcontroller and other components.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

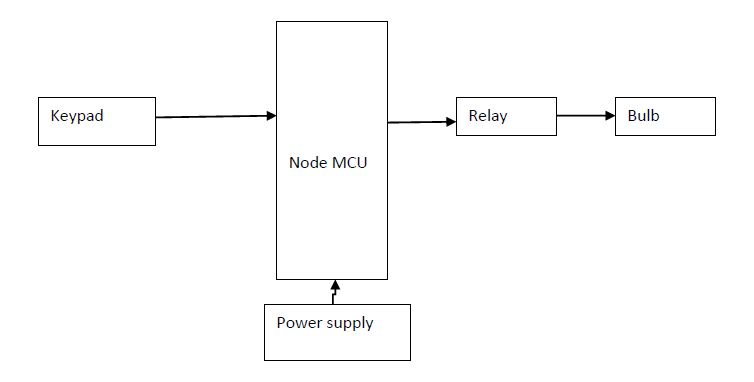

Block Diagram
Specifications
Paper Publishing
