Operation of Hybrid AC-DC Microgrid with an Interlinking converter
Also Available Domains Hybrid Systems
Objective
To improve the power quality of power sharing in both AC and DC sub grids.
Abstract
The proposed paper presents the analysis of power sharing in a renewable hybrid microgrid. The hybrid microgrid presented here comprises the DC and AC subgrids interconnected by an interlinking converter. Droop control technique is presented in this paper for power flow management among all the sources in two types of subgrids. The coordinated operation of DC sources and AC sources and interlinking converters are investigated. The droop control concept uses an appropriate normalization technique for merging both subgrids. The operation of hybrid ac-dc microgrid with an interlinking converter using droop control technique for power sharing is investigated by simulation in this paper.
Index Terms- Hybrid Micro grid, active power sharing, droop control, interlinking converter.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

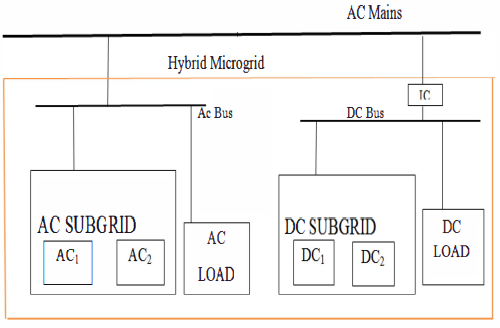

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
