Off-board electric vehicle battery charger using PV array
Objective
The main objective of this project is to provide continuous power supply to charge the off board electric vehicle using PV array.
Abstract
In this project, a photovoltaic (PV) array-based off-board EV battery charging system proposed. Irrespective of solar irradiations, the EV battery is to be charged constantly which is achieved by employing a backup battery bank in addition to the PV array. Using the Sepic converter and three-phase bidirectional DC–DC converter, the proposed system is capable of charging the EV battery during both sunshine hours and non-sunshine hours. During peak sunshine hours, the backup battery gets charged along with the EV battery and during non-sunshine hours, the backup battery supports the charging of EV battery. The proposed charging system is simulated using Matlab/Simulink Software.
Keywords: — PV array, Sepic Converter, Bi-Directional DC-DC Converter, EV Battery, and Charge Controller.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

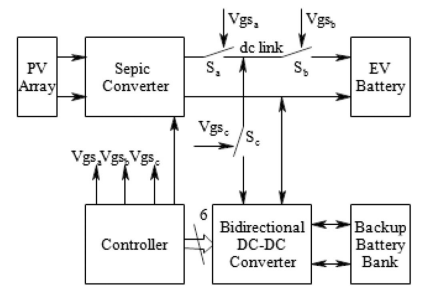

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
