Movement Sensed Automatic Door Opening System for Buses on Emergency Doors
Objective
The main objective of this project is to open emergency door automatically when abnormal movement is sensed
Abstract
During automobile fire accidents, the lives couldn’t be saved because of the failure in opening the vehicle doors. There are systems available for the detection and control of fire accidents in automobiles but those systems are designed to detect the fire, warn the drivers and operate the fire extinguishers to control the fire. The system designed in this research work tends to unlock the vehicle door and Temperature sensors and smoke sensors are used to detect the fire and different motors are used to open the door
Keywords: Automatic door unlock; accident; LM35 temperature sensor; MQ-2 sensor, arduino, DC motor, MEMS Sensor
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

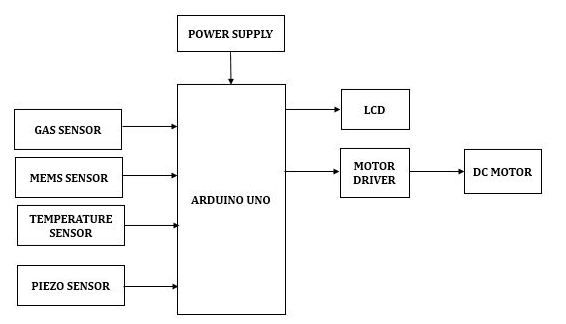

Block Diagram
Specifications
Hardware Requirements:
- Arduino UNO
- Piezoelectric sensor
- MQ2 Gas sensor
- Temperature sensor
- MEMS Sensor
- Motor Driver
- DC motor
- Connecting wires
- 16x2 LCD
- 4-Bit PCB with Potentiometer
Software Requirements:
- Arduino IDE
- Embedded C
- Fritzing
Learning Outcomes
- Arduino UNO Pin diagram and Architecture
- How to install arduino IDE Software
- Setting up and Installation procedures for Arduino UNO
- Introduction to Arduino IDE
- Commands in Arduino
- How to install Libraries?
- Basic coding in arduino
- How to interface MQ2 sensor with Arduino?
- Working of LM35 temperature sensor
- Working of Piezo sensor
- How to interface Piezo sensor with Arduino?
- How to interface LM35 sensor with Arduino?
- How to interface MEMS sensor with Arduino?
- Working of 16x2 LCD
- How to interface 16x2 LCD with Arduino?
- Working of MEMS sensor
- About Project Development Life Cycle:
- Planning and Requirement Gathering(( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
