Model Predictive Control Based Virtual Inertia Emulator for an Islanded AC Microgrid
Objective
The main objective of this project is to enhance transient response and robustness of local voltage, as well as inertia emulation for islanded ac MGs.
Abstract
In this project, to realize local voltage regulation and power-sharing of an islanded ac microgrid. a model predictive control based virtual synchronous generator (VSG-MPC) is proposed. An improved finite-set MPC is first proposed for the inner loop, achieving simplified control structure, faster dynamic response, enhanced bandwidth and stability, as well as improved current limitation.
In the outer control loop, a simplified VSG without a phase-locked loop is employed to realize active power sharing and inertia emulation. The merits above are verified by a description function of MPC and the frequency-domain response of the overall VSG. Simulation results verify the feasibility of the proposed method.
Keywords: Predictive control, voltage source converter, virtual synchronous generator (VSG), microgrid.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

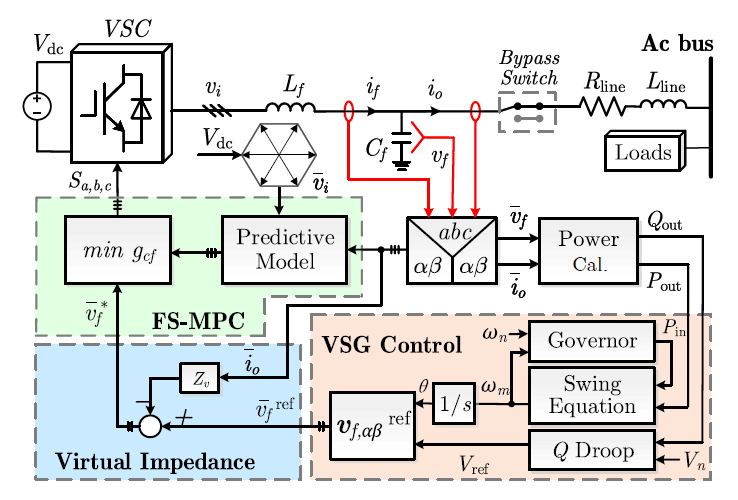

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to solar power generation
- Introduction to Matlab/Simulink software
- Introduction to microgrids.
- Introduction to distributed energy resources (DERs).
- Introduction to droop control methods.
- Introduction to power electronics converters
- Introduction to phase locked loop (PLL)
- Design of PLL
- Design of Power electronic converters.
- Design of model predictive control based virtual synchronous generator (VSG-MPC)
- We can learn about the generation of gate pulses to the converter
- We can learn about the difference between both grid connected and islanded modes
- Introduction to controllers
- Design of PI controller
- Introduction to open loop and closed loop control system
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
