Maximum Power Tracking and Battery, LED Controlling for PV Systems
Objective
The main objective of this project is to develop a novel three-point weight comparison method that avoids the oscillation problem of the perturbation and observation algorithm which is often employed to track the maximum power point
Abstract
The electric power supplied by a photovoltaic power generation system depends on the solar radiation, current and voltage. Designing efficient PV systems heavily emphasizes tracking the maximum power operating point.
This work develops a novel three-point weight comparison method that avoids the oscillation problem of the perturbation and observation algorithm which is often employed to track the maximum power point. Furthermore, a low cost control unit is developed, based on a single chip to adjust the output voltage of the solar cell array. Finally, experimental results confirm the superior performance of the proposed method.
Keywords: Arduino uno, sensors, Switch, motor driver, DC motor, LCD, LED, power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

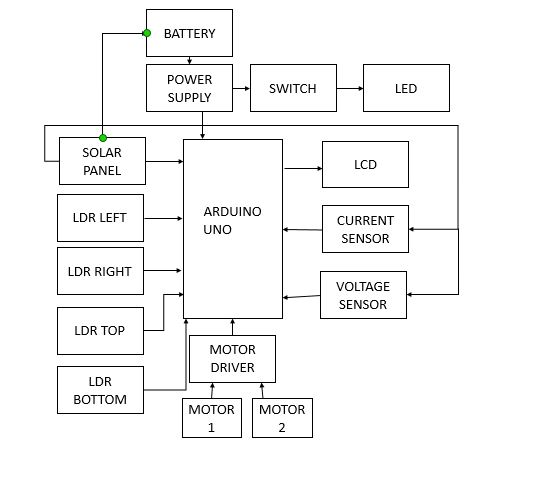

Block Diagram
Specifications
Hardware Requirements:
- Arduino Uno
- Current sensor
- Voltage sensor
- LDR
- Motor driver and DC motor
- LCD
- LED
- Switch
- GSM
- Solar panel
- Battery
- power supply Board
Software Requirements:
- Arduino IDE
- Fritzing
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Voltage sensor
- Interface Voltage sensor with Arduino?
- Working of Current sensor
- Interface Current sensor with Arduino?
- Working of Motor driver and DC motor
- Interface Motor driver and DC motor with Arduino?
- Working of LCD
- Interface LCD with Arduino?
- Working of LDR
- Interface LDR with Arduino?
- Working of Switch
- Interface Switch with Arduino?
- Working of LED
- Interface LED with Arduino?
- Working of power supply
- Working of Solar panel
- Working of battery
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
