IoT-enabled Moving Wheelchair with Obstacle Detection and Continuous Health Monitoring
Objective
This project explores an IoT-enabled moving wheelchair featuring obstacle detection and continuous health monitoring, enhancing user mobility, safety, and health management through integrated smart technologies.
Abstract
The "IoT-Enabled Moving Wheelchair with Obstacle Detection and Continuous Health Monitoring" is a sophisticated system designed to enhance both mobility and safety for wheelchair users. Central to the system is an Arduino Uno microcontroller, which coordinates various components including a Bluetooth HC-05 module for wireless control of the wheelchair, a motor driver, and DC motors for precise movement. Obstacle detection is managed by ultrasonic sensors, preventing collisions and ensuring safe navigation. Health monitoring features include a heartbeat sensor for real-time heart rate tracking and a Dallas temperature sensor to monitor body temperature. Data is continuously uploaded to ThingSpeak using a NodeMCU module, providing remote access to health and movement metrics. In case of emergencies, a GSM module sends instant notifications to caregivers or emergency contacts. This integrated approach provides users with enhanced mobility, real-time health monitoring, and immediate emergency communication, offering greater independence and safety.
Keywords: Arduino Uno, Motor Driver, GSM, DC Motor,Health Monitoring
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

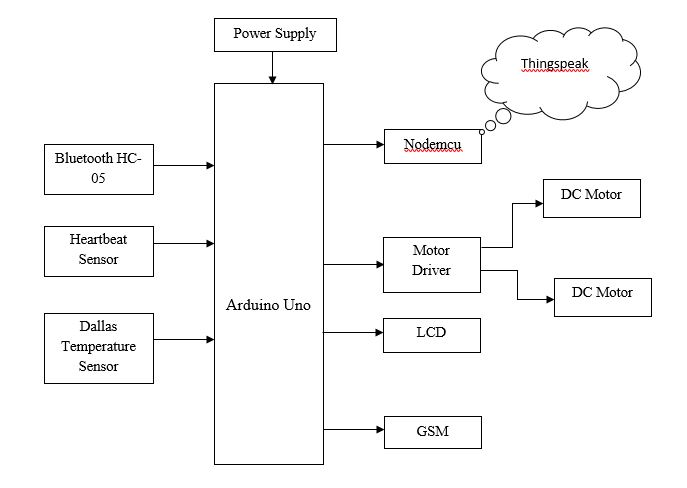

Block Diagram
Specifications
Hardware requirements:
- Arduino
- Bluetooth
- Motor Driver
- DC Motors
- Ultrasonic
- Heartbeat Sensor
- Temperature Sensor
- NodeMCU
- GSM Module
- LCD
- Power Supply
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE and software tools
- Basic coding with Arduino
- Working of Motor Driver Module
- Interface Heartbeat Sensor with Arduino
- Working of Heartbeatsensor
- Interface Bluetooth HC-05 Module with Arduino
- Working of GSM module with Arduino
- Understanding power supply for Arduino
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software, tools, hardware components, etc.)
- Schematic preparation
- Code development and debugging
- Hardware setup and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools
- Solution providing for real-time problems
- Working with a team/individually
- Working on creative ideas
- Project development skills:
- Problem analysis
- Problem solving
- Creativity and imagination
- Programming skills (Python)
- Deployment
- Testing
- Debugging
- Project presentation
- Report writing
