IOT based Water Over Flow Indicator
Abstract
One of the Precious and important resource in the earth maybe water. Now a days people need everything happen smarter other than olden days techniques used. In this paper Internet of Things (IOT) Based on the concept that to define energy conservation in tank level water monitoring system(sense and monitor). The Main objective is to have a sensor which detects the level of water and it should notify the user about the water level which is currently available in the tank. The Ultrasonic Sensor is placed at the top of the tank in which we will measure the level of water and the if the distance of the water from the sensor gets increased, it means that the water in the tank gets low and finally after reaching to an extent the system should notify a warning message to the user. The Major requirement would be Ultrasonic sensor which senses level of water (in distance)from the top of the tank to the bottom of the tank. The sensor is connected to the system using the Wi-Fi of NODE MCU. The PHP server is connected in the NodeMCU. The application is used to get the values and the water pump is controlled by using it.
Keywords: Node MCU, Ultrasonic sensor, PHP server, Water Overflow
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

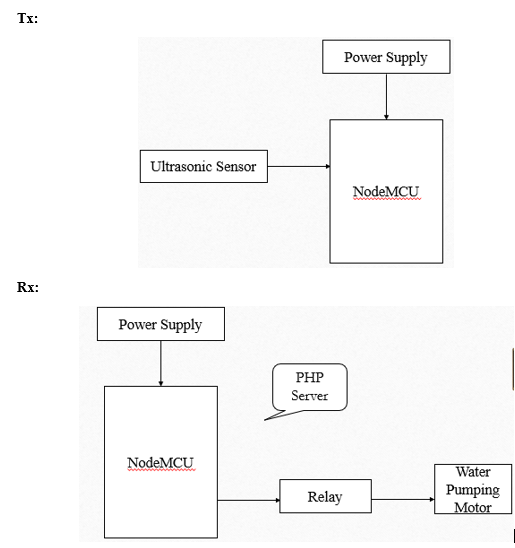

Block Diagram
Specifications
Hardware Requirements
- Arduino
- NodeMCU
- Ultrasonic sensor
- Relay
- DC Water Pump
- Power supply
Software Requirements
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino pin diagram and architecture
- NodeMCU pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Ultrasonic Sensor
- Interface Ultrasonic Sensor with NodeMCU?
- Working of Relay
- Interface Relay with Arduino?
- How to send data from NodeMCU to Arduino?
- How to send data from Arduino to NodeMCU?
- Working of power supply
- Working of GSM
- Interface GSM with Arduino?
- Working of Water Pump
- Interface Water Pump with Arduino via Relay?
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
