IOT Based Prepaid Energy Meter
Objective
The main objective of our project is to design and develop an intelligent energy metering system that can efficiently control the amount of electricity consumed by the user.
Abstract
The billing process of electricity consumption currently used is very long process and requires lot of man power. Going to each and every consumer’s house and generating the bill is a laborious task and requires lot of time. The purpose of this project is to design and develop an intelligent energy metering system that can efficiently control the amount of electricity consumed by the user. Electricity users can buy specific amount of energy to use it only when they needed. The billing process is prepaid energy billing in which customer has to pay first and then use it.
This system also implements an automated system which can charge different amounts for power consumption during different times. The prepaid system uses method of GSM based recharging. The recharging can be done from any remote place without accessing the energy meter physically.
Keywords: Node MCU, Energy meter, LCD, GSM, power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

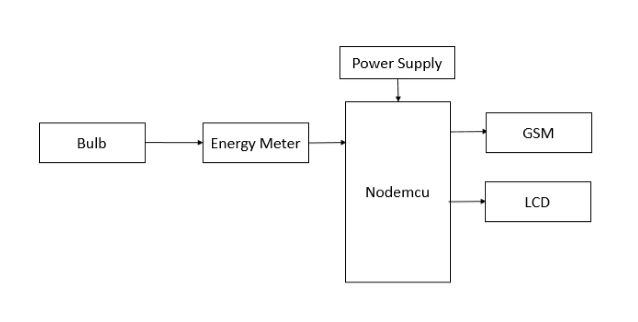

Block Diagram
Specifications
Hardware Requirements:
- Node MCU
- Energy meter
- GSM
- LCD
- Power supply Board
- Bulb
- Step Down Transformer
Software Requirements:
- Arduino IDE
- Fritzing
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Energy meter
- Interface Energy meter with Node MCU?
- Working of LCD
- Interface LCD with Node MCU?
- Working of GSM
- Interface GSM with Node MCU?
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
