IOT Based Human Wearable Device for Self Security and Health Monitoring System
Objective
The main objective of this project is to provide security to women so that they never feel helpless while facing such social challenges.
Abstract
The project presents a Wearable safety device for any person who is in need like women when she is in danger or any common person who needs medical assistance and help during emergency situations using the Arduino and some health monitoring Sensors. The purpose of this device is to safeguard women and any people in the event they might face any danger. The device uses IoT to communicate with the secure channels and to send alerts to them. The device is programmed in such a way that as soon as the sensor readings go above the threshold values the message will be sent.
The GPS and GSM are used to share the users location directly to the relevant authorities and saved contacts. The two additional switches in the device work for sending manual alerts in case of emergency and as panic switch to get the shock. ThingSpeak is an IoT platform that allows us to connect and save sensor data in the cloud and develop IoT applications. The advantage of this platform helps us in uploading the data on ThingSpeak after every 30sec so that continuous health monitoring of the individual can also be done.
Keywords: Arduino Uno, Switch, MEMS sensor, Temperature sensor, blood pressure sensor, GSM, GPS, LCD, Buzzer, power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

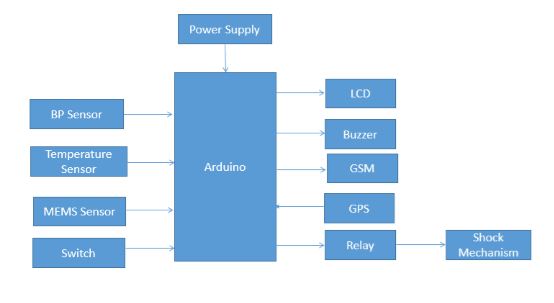

Block Diagram
Specifications
Hardware Requirements:
- Arduino
- Switch
- MEMS sensor
- Temperature sensor
- GPS
- Blood pressure sensor
- Buzzer
- GSM
- LCD
- Power supply
Software Requirements:
- Arduino IDE
- Fritzing
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Switch
- Interface Switch with Arduino?
- Working of MEMS sensor
- Interface MEMS sensor with Arduino?
- Working of Blood pressure sensor
- Interface Blood pressure sensor with Arduino?
- Working of Temperature sensor
- Interface Temperature sensor with Arduino?
- Working of LCD
- Interface LCD with Arduino?
- Working of GSM
- Interface GSM with Arduino?
- Working of GPS
- Interface GPS with Arduino?
- Working of Buzzer
- Interface Buzzer with Arduino?
- Working of Power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
