Internal Crack Detection in Cylindrical Concrete using Coupled Sensors
Objective
The main objective of this project is to detect cracks by using Ultrasonic sensor and sending location to Authorities through message
Abstract
Each year, millions of dollars are invested on road maintenance and reparation all over the world. In order to minimize costs, one of the main aspects is the early detection of those flaws. Different types of cracks require different types of repairs; therefore, not only a crack detection is required but a crack type classification. This work obtained an average of 88% of success detecting cracks and an 80% of success detecting the type of the crack. It could be implemented in a vehicle traveling as fast as 130 kmh or 81 mph.
In this work we are introducing a project that aims in designing crack detection scheme (CDS) using ultrasonic Sensor. This avoids the vehicle accidents by detecting the cracks on bridge tracks. And also capable of alerting the authorities in the form of SMS messages along with location by using GPS and GSM modules. The system also includes distance measuring sensor which displays the track deviation distance between the two tracks. This will save several vehicles in India from unwanted damages from the bridge track.
This work introduces a project that aims in designing railway crack detection scheme (CDS) using TSOP ultrasonic RECEIVER SENSOR assembly system which avoids the road accidents by detecting the cracks on bridge tracks. And also capable of alerting the authorities in the form of SMS messages along with location by using GPS and GSM modules. The system also includes distance measuring sensor which displays the track deviation distance between the bridge tracks.
Keywords: Arduino UNO, Ultrasonic Sensor,LCD, GSM, GPS, IOT.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

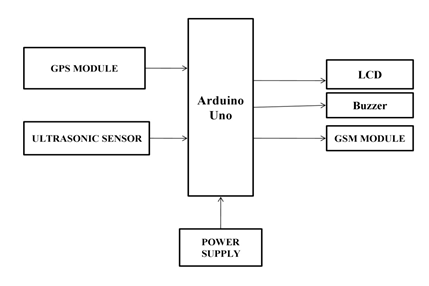

Block Diagram
Specifications
Hardware requirements:
- Arduino UNO
- GSM Module
- GPS Module
- Buzzer
- LCD
- Ultrasonic Sensor
- 12V Adapter
- Power supply Board
Software requirements:
- ArduinoIDE
- Fritzing
- Third Party server
Learning Outcomes
- Arduino UNO Pin diagram and Architecture
- How to install arduino IDE Software
- Setting up and Installation procedures for Arduino UNO
- Introduction to Arduino IDE
- Commands in Arduino
- How to install Libraries?
- Basic coding in arduino
- Introduction to Serial communication
- Working of GSM Module
- How to interface GSM Module with Arduino UNO?
- Working of GPS Module
- How to interface GPS Module with Arduino UNO?
- Working of Buzzer
- How to interface Buzzer with Arduino UNO?
- Working of ultrasonic sensor
- How to interface ultrasonic sensor with Arduino UNO?
- Working of LCD
- How to interface LCD with Arduino UNO?
- About Project Development Life Cycle:
- Planning and Requirement Gathering(( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
