Intelligent Fan Air Cooling System

Project Code :TEMBMA3915

Objective

The objective of this system is to develop an intelligent fan-based air cooling system that automatically adjusts speed based on environmental conditions. It aims to monitor temperature and humidity to provide efficient cooling. The system optimizes energy consumption while maintaining user comfort. Additionally, it enhances automation and smart control in everyday appliances.

Abstract

The Intelligent Fan Air Cooling System is designed to automatically regulate indoor temperature and improve air quality using an Arduino-based control mechanism. The system integrates sensors and actuators such as an MQ135 air quality sensor to monitor pollution levels and a temperature-based trigger mechanism to detect rising environmental heat. When the temperature increases beyond a predefined threshold, the Arduino activates a relay module to switch on a cooling fan and a DC water pump simultaneously. The water pump helps in enhancing the cooling effect by maintaining surface moisture, while the fan circulates air to reduce ambient temperature effectively. An LCD display is used to show real-time sensor readings and system status, ensuring user-friendly monitoring. This automated system provides an energy-efficient and smart solution for maintaining comfortable and healthier indoor conditions.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

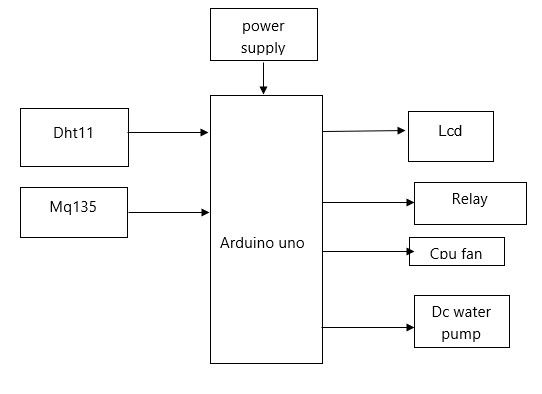

Block Diagram

Specifications

Hardware Components

Arduino UNO
MQ135 Sensor
DHT11 Sensor
Relay Module
CPU Fan
DC Water Pump
LCD Display
Power Supply
12V 1A Adapter
Connecting Wires

Software Components

Arduino IDE
Embedded C

Learning Outcomes

Learning outcomes:
• Arduino pin diagram and architecture
• How to install Arduino IDE / setup software
• Setting up and installation procedure for Arduino
• Introduction to Arduino IDE / development environment
• Basic programming in Arduino (Python / C / C++)
• Basics of Embedded C / Arduino programming
• Basics of IoT platforms
• Working of power supply
• About Project Development Life Cycle:
• Planning and Requirement Gathering (software, tools, hardware components, etc.)
• Schematic preparation
• Code development and debugging
• Hardware development and debugging
• Development of the project and output testing
• Practical exposure to:
• Hardware and software tools
• Solution providing for real-time problems
• Working with team/individual
• Work on creative ideas
• Skills developed:
• Project development skills
• Problem analyzing skills
• Problem solving skills
• Creativity and imaginative skills
• Programming skills
• Deployment
• Testing skills
• Debugging skills
• Project presentation skills
• Thesis writing skills
