Instantaneous Complex Power Control of a Grid-Tie VSC Supplying a Constant Power Load
Objective
Main objective of this project is to control the instantaneous complex power in a VSC feeding a constant power load. And also Improving the disturbance rejection of the controller.
Abstract
In this project, a nonlinear controller for a grid-tie VSC supplying a constant power load is introduced. The control law combines a feedback loop and a feed forward compensator. The feedback loop strategy uses a feedback linearizing method for compensating nonlinearities appearing in the VSC model.
The performance in presence of changes between two different values of constant power is improved by including a fast feed forward compensation. This compensator uses estimates of power load and its time derivative obtained from a nonlinear observer. The resultant strategy is validated via simulation using MATLAB/Simulink.
Keywords: VSC; instantaneous power; constant power load; nonlinear control; nonlinear observer, feed forward compensation.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

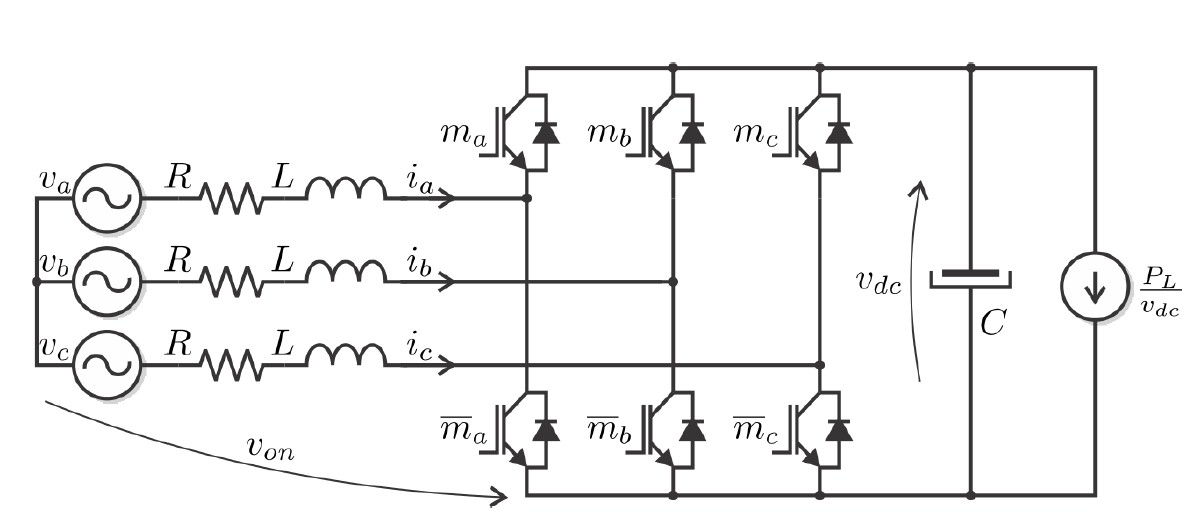

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to power electronics converters
- Introduction to phase locked loop (PLL)
- Introduction to PWM techniques
- Design of PLL
- Introduction to Parks transformation
- Introduction to Clarks transformation
- Design of Clarks transformation
- Design of Parks transformation
- Design of Voltage source converter
- Introduction to controllers
- Design of PI controller
- Introduction to nonlinear control techniques
- Design of nonlinear control technique
- Introduction to nonlinear observer
- Introduction to different types of loads
- Design of loads
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
