INDUCTOR LESS MULTI-MODE RF-CMOS LOW NOISE AMPLIFIER DEDICATED TO ULTRA LOW POWER APPLICATIONS
Also Available Domains Transistor Logic
Objective
This work presents and analyses the design of a multi-mode Low Noise Amplifier (LNA) dedicated to 2.4 GHz Wireless Sensor Network (WSN) applications.
Abstract
This work presents and analyses the design of a multi-mode Low Noise Amplifier (LNA) dedicated to 2.4 GHz Wireless Sensor Network (WSN) applications. The proposed inductorless LNA, implemented in a 45 nm GPDK CMOS technology, is based on a common-gate configuration imbedded with a common-source stage to boost the overall Trans conductance of the circuit. The LNA is specifically designed, and optimized, to address three modes of operation. The reconfiguration is performed through current tuning, combined with switching the back gate of the amplification transistors. The proposed implementation allows the figure of merit (FOM) to be maintained constant in the different modes of operation.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

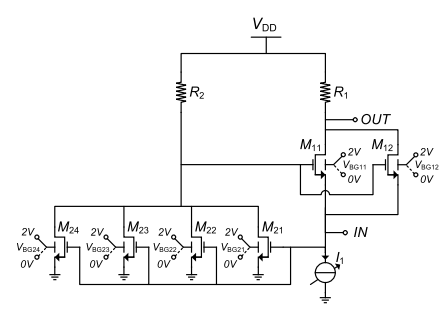

Block Diagram
Specifications
Specifications:
Software Requirements:
· Cadence Virtuoso
· Technology files: 45nm GPDK
Hardware Requirements:
· Microsoft® Windows XP
· Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
· 512 MB RAM
· 100 MB of available disk space
Learning Outcomes
Learning Outcomes:
- Introduction to inductor less devices
- Need of inuctorless designs in LNA
- Transistors & its applications
o Types of Transistors
o Logic Gates using Transistors
o Pull Up and Pull Down networks
o Importance of Transistors
- MOS Fundamentals
- NMOS/PMOS/CMOS Technologies
- How to design circuits using Transistor logic?
- Transistor level design for LNA
- How to design low power, high speed area efficient transistor level circuits?
- Drawbacks in CMOS technology
- Scope of LNA in today’s world
- Applications in real time
- Cadence tool for design and simulation
- Solution providing for real time problems
· Project Development Skills:
o Problem Analysis Skills
o Problem Solving Skills
o Logical Skills
o Designing Skills
o Testing Skills
o Debugging Skills
o Presentation skills
o Thesis Writing Skills
Paper Publishing
