Improved SMS islanding detection method for grid-connected converters
Objective
The main objective of this project is to improve the islanding detection capability for grid connected converters
Abstract
In this project, the popular slip mode frequency shift (SMS) and auto phase shift active islanding detection methods are investigated and an improved (IM)-SMS strategy is proposed in this study. In the proposed method, additional phase shift is introduced to help in stimulating the action of the islanding detection and the algorithm is simplified as well. When the utility grid is disconnected, the algorithm keeps the frequency of the converter output voltage deviating until the frequency protection relay is triggered. The working principle of the method is introduced and the guidance of parameters selection and optimization is also provided. The islanding detection performance is evaluated through theoretical analysis and verified by digital simulation and experimental results. The IM-SMS method exhibits features of simplicity, easy implementation and high reliability. The simulation results of this method can be evaluated by using Matlab/Simulink Software.
Keywords: —Grid connected converter, current controller, IM-SMS, islanding mode.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

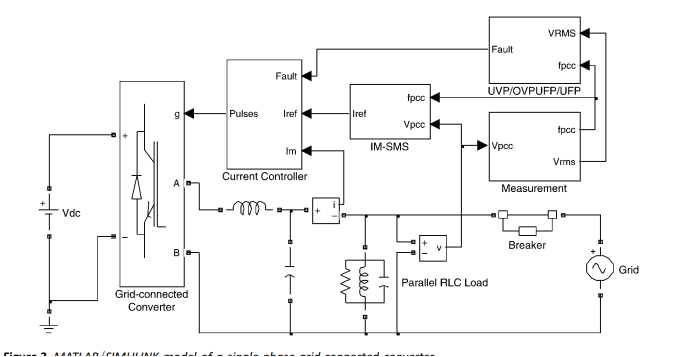

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to controllers.
- Study of PWM techniques.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
