Improved DC-Link Voltage Regulation Strategy for Grid-Connected Converters
Objective
Main objective of this project is, fast transient response, regulate the dc-link voltage, reduce harmonic oscillations at the dc-side caused by the unbalanced ac currents.
Abstract
In this project, an improved dc-link voltage regulation strategy is proposed for grid-connected converters applied in dc microgrids. For the inner loop of the grid connected converter, a voltage modulated direct power control is employed to obtain two second-order linear time invariant systems, which guarantees that the closed-loop system is globally exponentially stable.
For the outer loop, a sliding mode control strategy with a load current sensor is employed to maintain a constant dc-link voltage even in the presence of constant power loads at the dc-side, which adversely affect the system stability. Furthermore, an observer for the dc-link current is designed to remove the dc current sensor at the same time improving the reliability and decreasing the cost. The effectiveness of the proposed system is verified by simulation in MATLAB/SIMULINK.
Keywords: DC-link voltage, DC microgrids, second-order linear time invariant system, sliding mode control.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

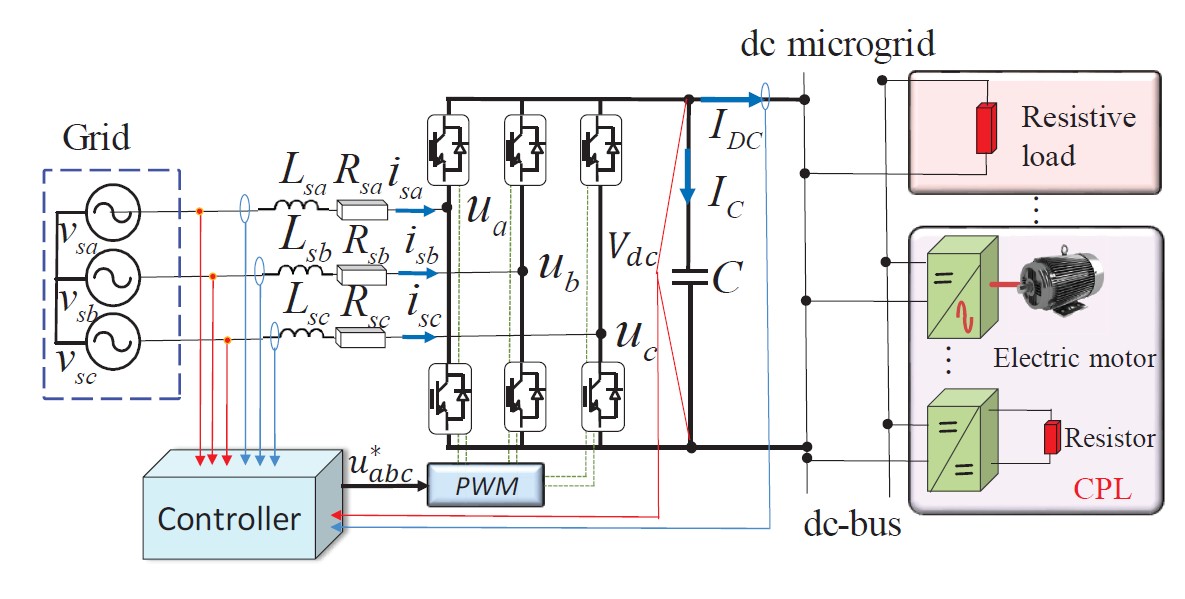

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to power electronic devices.
- Introduction to power converters.
- Introduction to Pulse Width Modulation techniques.
- Introduction to controllers.
- Design of adaptive PI controller.
- Introduction to filers.
- Design of filters.
- Design of PWM technique.
- Introduction to park’s transformation.
- Design of park’s transformation.
- Introduction to phase locked loop.
- Design of phase locked loop.
- Design of voltage source converter.
- Design of VM-DPC controller.
- Introduction to Clark’s transformation.
- Design of Clark’s transformation.
- Introduction to different types of loads.
- Design of loads.
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
