Implementation of Three Phase Photo Voltaic (PV) Integrated Unified Power Quality Conditioner (UPQC)
Also Available Domains Solar Power Generation
Objective
The main objective of this project is to improved power quality in the three phase photo voltaic System by using UPQC
Abstract
In this project implementation of Three Phase-Solar PV Integrated UPQC is employed The series-shunt compensators along with power point tracking to get maximum power is found useful in terms of performance enhancement of the system.. Solar PV system are mainly affected due to the insertion of harmonics during sag-swell conditions when connected to non-liner loads. The UPQC techniques is useful to enhance the performance of such systems by compensating the impact of harmonics. The performance of the system can be evaluated by using MATLAB Simulink 2018a Software
Keywords Renewable Systems, PV, UPQC, Solar PV, MPPT, .Power Quality, PI Controller
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

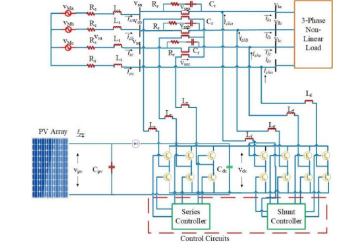

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink
· We can learn about UPQC
· We can learn about .solar pv
· We can learn about pi Controllers
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
