Implementation of Modulation Schemes for Satellite Links BPSKQPSK
Objective
To design and simulate a satellite data frame generator with CRC for error detection, analyzing the performance of BPSK and QPSK modulation schemes in terms of BER, efficiency, and robustness.
Abstract
This paper presents the design and simulation of a satellite data frame generator with Cyclic Redundancy Check (CRC) for error detection, evaluating the performance of Binary Phase Shift Keying (BPSK) and Quadrature Phase Shift Keying (QPSK) modulation schemes. The system ensures data integrity using CRC while transmitting over a satellite communication link. BPSK and QPSK are analyzed in terms of bit error rate (BER), spectral efficiency, and robustness under various Signal-to-Noise Ratio (SNR) conditions. BPSK, known for its resilience in low SNR environments, demonstrates superior reliability at the cost of lower data throughput. QPSK, on the other hand, offers higher spectral efficiency by transmitting two bits per symbol, achieving improved data rates while maintaining acceptable BER in moderate to high SNR conditions. Simulation results show that while BPSK is better suited for highly noisy channels, QPSK provides a favorable trade-off between efficiency and reliability, making it a more effective choice for satellite communication systems where bandwidth utilization is critical.
Keywords: Satellite Link, Cyclic Redundancy Check (CRC), Binary Phase Shift Keying (BPSK), Quadrature Phase Shift Keying (QPSK), Bit Error Rate (BER), Data Rate and Throughput.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

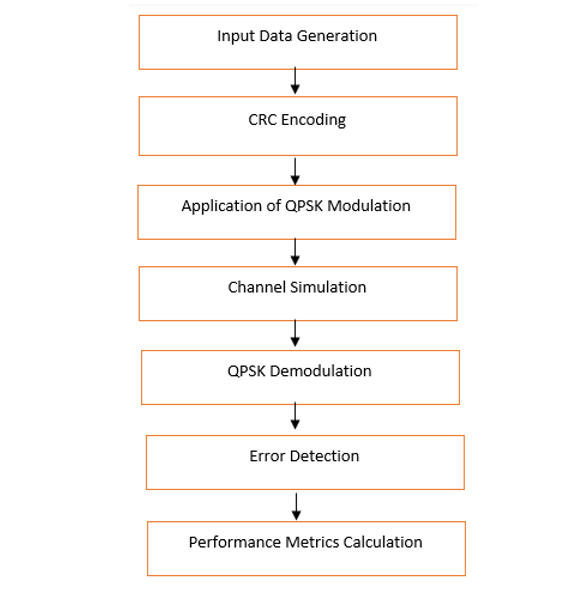

Block Diagram
Specifications
Software: Matlab 2020a or above
Hardware:
Operating Systems:
- Windows 10
- Windows 7 Service Pack 1
- Windows Server 2019
- Windows Server 2016
Processors:
Minimum: Any Intel or AMD x86-64 processor
Recommended: Any Intel or AMD x86-64 processor with four logical cores and AVX2 instruction set support
Disk:
Minimum: 2.9 GB of HDD space for MATLAB only, 5-8 GB for a typical installation
Recommended: An SSD is recommended A full installation of all MathWorks products may take up to 29 GB of disk space
RAM:
Minimum: 4 GB
Recommended: 8 GB
Learning Outcomes
· Introduction to Matlab
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· Matlab coding skills
· About tools & libraries
· Application Program Interface in Matlab
· About Matlab desktop
· How to use Matlab editor to create M-Files
· Features of Matlab
· Basics on Matlab
· What is Communication?
· About Communication
· Introduction to Communication
· How Communication Works?
· Importing the System Design, Characterization and Visualization
· Analyzing of BER tool
· Analyzing of Error Rate Test Console
· Generation of WSN
· WSN network creation
· Nodes Communication
· Clustering
· Routing
· Convolutional
· Equalization and Synchronization etc.,
· How to extend our work to another real time applications
· Project development Skills
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
