Home Made Maximum Power Point Tracking System
Objective
The main objective of this project is to track power consumption using current sensor and voltage sensor
Abstract
For maximizing a photovoltaic (PV) power, continuously tracking the maximum power point (MPP) of the system is highly required. MPP of the PV system depends on solar radiation conditions, ambient temperature, and the load demand. Maximum power point tracking (MPPT) techniques can catch MPP of PV system. Such techniques can be realized in many various forms of hardware and software. The goal of this project was to develop, construct, and test a working solution to the MPP problem with a limited budget. This tutorial Contains the general circuit of MPPT, the panel cell and it is a formula, about how MPPT works, the required parts and sub-circuit. We choose buck converter in our project and explained how to use Arduino and how to apply it in Proteus.
Keyword: Safety, Arduino Mega, voltage, Current, Wi-Fi Sensor.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

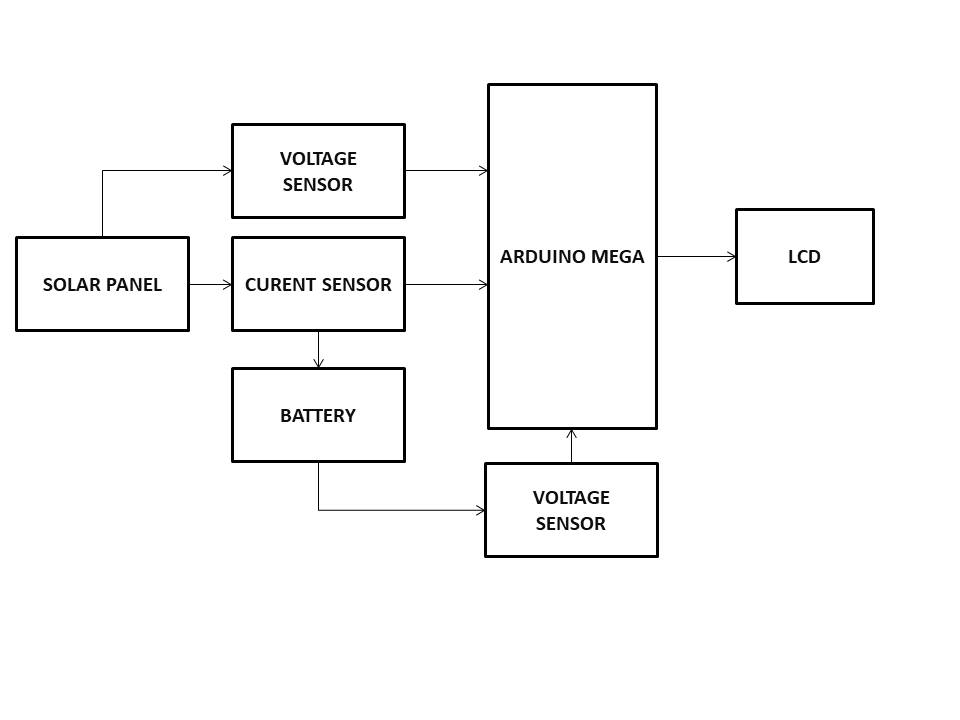

Block Diagram
Specifications
- 5V/12V Power supply
- Arduino Mega
- ESP8266
- Current sensor
- Voltage sensor
- Solar panel
- 12v Battery
- LCD(16×2)
- 4-Bit PCB with Potentiometer
- Arduino IDE
- Embedded C
- Fritzing
- Third Party Server
Learning Outcomes
- Arduino UNO Pin diagram and Architecture
- How to install arduino IDE software
- Setting up and installation procedures for Arduino UNO
- Introduction to Arduino IDE
- Commands in Arduino
- Basic coding in arduino
- Practical exposure to:
- Hardware and software tools
- Solution providing for real time problems
- Working with team/ individual
- Work on creative ideas
- Project development Skills
- Problem analyzing skill
- Problem solving skill
- Creative and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
