Harmonic Reduction and Performance Improvement of BLDC Motor Using a Selective Harmonic Elimination PWM Based Controller
Objective
The main objective of this project is to reduce the motor current harmonics and their negative effects and also improve the overall performance of the motor by using PWM controller
Abstract
In this paper, a control scheme is proposed which aims to reduce the motor current harmonics and their negative effects and also improve the overall performance of the motor. A DC-DC boost converter fed inverter with Selective Harmonic Elimination based PWM and a passive low pass filter combination is used to reduce the THD, reduce the harmonic copper loss and improve the overall system performance like torque ripples and input power factor. The control scheme also automatically decides between operating conditions where SHEPWM is favorable or not and thus avoids the cases of unnecessary introduction of switching losses.
Keywords: Brushless DC motors, PWM (Pulse Width Modulation), THD (Total Harmonic Distortion).
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

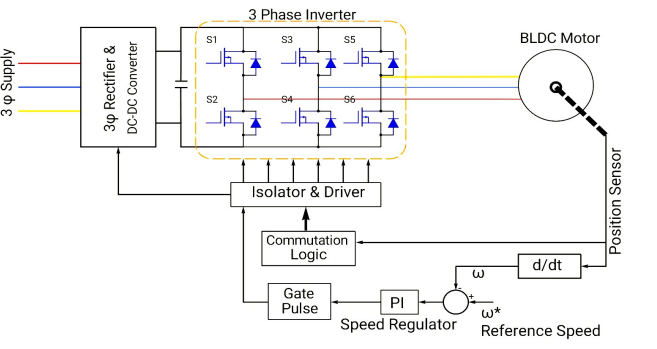

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
· Introduction to Matlab/Simulink
· What is EISPACK & LINPACK
· How to start with MATLAB
· About Matlab language
· About tools & libraries
· Application of Matlab/Simulink
· About Matlab desktop
· Features of Matlab/Simulink
· Basics on Matlab/Simulink
· Introduction to power system
· Introduction Shunt active power filter (SAPF)
· Introduction to nonlinear loads
· Design of Simulink Based Filter
· Introduction to open loop and closed loop control system
· Introduction to BLDC motor
· Introduction to Voltage Source Converters (VSC)
· We can learn about PI controller
· We can learn about 3 phase inverter
· We can learn about different types of loads.
· We can learn about Direct torque controlling
· We learn about PWM controller
· Project Development Skills:
o Problem analyzing skills
o Problem solving skills
o Creativity and imaginary skills
o Programming skills
o Deployment
o Testing skills
o Debugging skills
o Project presentation skills
o Thesis writing skills
