ESP32-CAM Motion Sensor Security Camera
Abstract
The aim of this project is intelligent visual surveillance systems. In recent times, we used surveillance cameras for monitoring and recording moments, but manual surveillance and real-time monitoring is one of the most important and challenging branches of computer vision, which has been widely applied in peoples’ life, such as monitoring security.
The presence of surveillance cameras and a warning sign indicating that the area is under monitoring can serve as a significant deterrent to criminals and thieves, as the recorded footage can be used to identify people and trace their activities. It can be more advanced with Wi-Fi, which is a local area network running in a local environment or in a distributed setting.
Wi-Fi network protocol is one of the leading communication technologies used in the IoT world which supports low transmit power along with low cost. ESP32 is the second generation of Express if corporation IoT solution and it includes Wi Fi.
Keywords: ESP32 camera, PIR sensor, LED
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

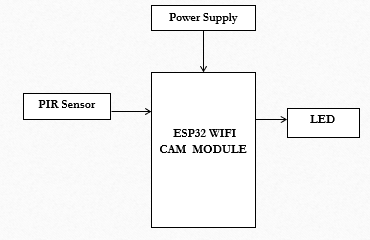

Block Diagram
Specifications
Hardware Requirements:
- Power Supply
- ESP32 Camera
- PIR Sensor
- LED
Software Requirements:
- Arduino IDE
- Embedded C
Learning Outcomes
- ESP32 Camera Module pin diagram and architecture
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Embedded C
- Working of PIR Sensor
- Interface PIR Sensor with Arduino?
- Working of LED
- Interface LED with Arduino?
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
