Energy Monitoring and Control Using IOT Systems
Objective
The main objective of this project is to control and monitor the appliances by Adafruit server
Abstract
Energy
is a very important aspect for any household, industries, agriculture and so.
Managing the energy efficiently and conserving it intelligently for appliances
is very much important. The energy usage is directly affected with Coal, oil
and so towards power generation. In this project energy monitoring and
controlling is proposed through Adafruit. LDR plays a major role to monitor the
consuming energy. LED is attached to energy meter and an LDR is placed opposite
to the LED so that it can detect the Light Intensity and generate Consumed
Units on LCD. Along with monitoring of consumed units, we are controlling electrical
Bulb through Adafruit. Thus both Energy Monitoring and Controlling is done
using IOT
Keywords: Raspberry Pi, LDR, Adafruit, Energy meter.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

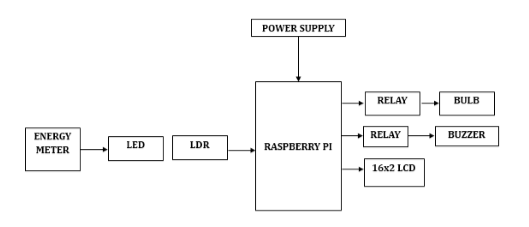

Block Diagram
Specifications
- Raspberry pi
- Micro SD card
- 5V adapter
- Energy meter
- LED
- LDR
- LCD
- 4-Bit PCB with Potentiometer
- Relay
- Buzzer
- NOOBS OS
- Python3 IDLE
- Adafruit
- Fritzing
- Advanced IP Scanner
- VNC Viewer
Learning Outcomes
- Raspberry Pi Pin diagram and Architecture
- How to install NOOBS Software
- Setting up and Installation procedures for Raspberry Pi
- Introduction to Python3 IDLE
- Commands in Python
-
- Basic coding in Python
- Working of heartbeat sensor
- Working of temperature sensor
- How to interface heartbeat sensor with Raspberry Pi?
- How to interface ADC with Raspberry Pi?
- How to interface relay and buzzer with Raspberry Pi?
- How to interface MQ2 sensor with Raspberry Pi?
- How to interface temperature sensor with Raspberry Pi?
- Introduction to IOT
- IOT Architecture
- IOT – Applications and Scope
- How to send data from Raspberry Pi to an IOT platform?
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
