Electric Vehicle Battery Parameters Monitoring System using IoT
Objective
The main objective is to develop an IoT-based system for real-time monitoring of electric vehicle battery metrics to enhance safety and lifespan. It uses predictive analytics for early warnings and optimized charging, with remote monitoring through a custom dashboard to improve performance and maintenance.
Abstract
This project presents an IoT-based electric vehicle battery monitoring system using Arduino, LCD, current sensor, voltage sensor, ultrasonic sensor, temperature sensor, potentiometer, NodeMCU, buzzer, and LED indicators. The system continuously monitors key battery parameters such as voltage, current, and temperature in real time. The data is displayed on an LCD and sent to an IoT platform through NodeMCU for remote monitoring. When the battery voltage drops below a threshold, the system automatically turns off LEDs and activates a buzzer alert. The system provides a low-cost and efficient solution for real-time battery health monitoring and safety management in electric vehicles.
Keywords: Arduino, IoT, Electric Vehicle, Battery Monitoring, Voltage Sensor, NodeMCU.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

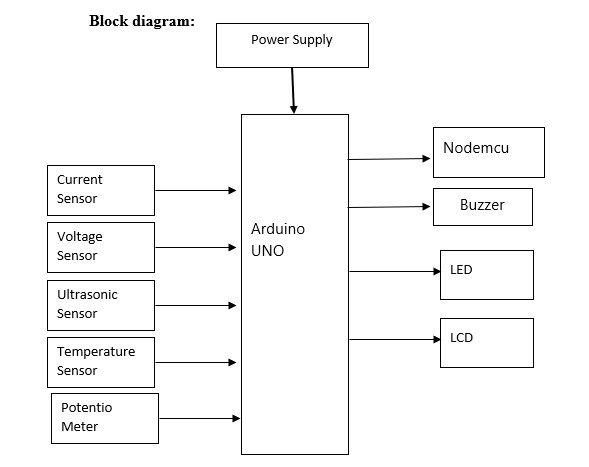

Block Diagram
Specifications
Hardware components:
- Arduino UNO
- LCD
- Current Sensor
- Voltage Sensor
- Ultrasonic Sensor
- Temperature Sensor
- Nodemcu
- Buzzer
- LED
- connectors-10
Software requirements:
- Arduino IDE
- Embedded C
Learning Outcomes
- Arduino pin diagram and architecture
- How to install Arduino UNO / setup software
- Setting up and installation procedure for Arduino UNO
- Introduction to Arduino UNO environment / development setup Basic programming in Arduino UNO (Embedded C)
- Basics of Embedded programming using Arduino UNO
- Basics of IoT platforms
- Working of power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering (software, tools, hardware components, etc.)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the project and output testing
- Practical exposure to:
- Hardware and software tools
- Solution providing for real-time problems
- Working with team/individual
- Work on creative ideas
- Skills developed:
- Project development skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginative skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
