Efficient FPGA architecture of optimized HAAR wavelet transform for image and video processing applications
Abstract
Discrete Wavelet Transform (DWT) is widely used in digital image and video processing due to its various advantages over other similar transform techniques. In this paper, efficient hardware architecture of Optimized Haar Wavelet Transform is proposed which is modeled using Optimized Kogge–Stone Adder/Subtractor, Optimized Controller, Buffer, Shifter and D_FF blocks. The existing Kogge–Stone Adder architecture is optimized by using Modified Carry Correction block which uses parallel architecture to reduce the computational delay. Similarly, the Controller block is optimized by using Clock Dividers and Reset Counter interdependently. To preserve the accuracy of the processed data, suitable size of intermediate bits in fractional format with the help of Q-notation is considered. The comparison results show that the proposed architecture performs better than existing ones concerning both hardware utilization and data accuracy.
Keywords: FPGA Implementations, Image/Video Processing, Modified Carry Correction, Optimized Controller, Optimized Haar Wavelet Transform, Optimized Kogge–Stone Adder/Subtractor
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

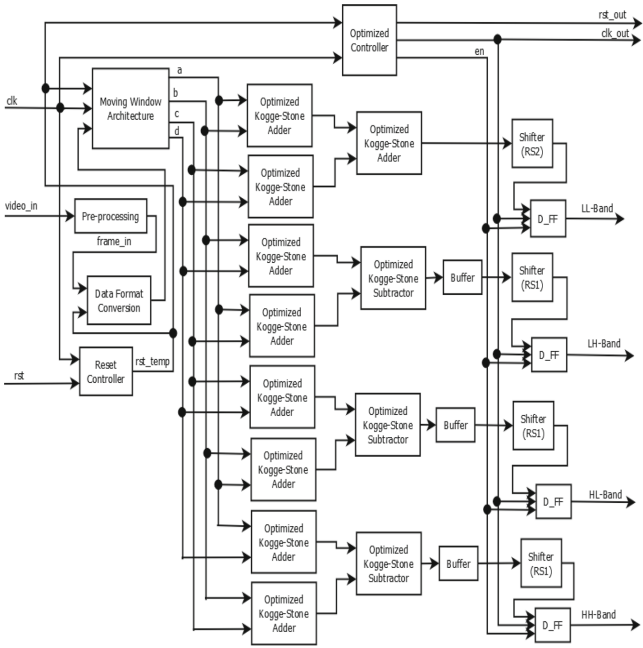

Block Diagram
Specifications
Software Requirements:
- Xilinx ISE Tool and Mat lab
- HDL: Verilog
Hardware Requirements:
- Microsoft® Windows XP,
- Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
- 512 MB RAM
- 100 MB of available disk space
Learning Outcomes
- Basics of Digital Electronics
- FPGA design Flow
- Introduction to Verilog Coding
- Different modeling styles in Verilog
- Data Flow modeling
- Structural modeling
- Behavioral modeling
- Mixed level modeling
- Concept of Approximation
- Importance Wavelet Transform
- Drawbacks of Exact Computing in error tolerant applications
- Introduction to Discrete Wavelet
- Knowledge on various types of wavelets
- Study on Image processing, Modified Kogge–Stone Adder/Subtractor, Optimized Controller, Buffer and Shifter
- Knowledge on optimized Haar Discrete Wavelet
- Applications of HDW in real time applications
- Scope of approximation concept in today’s world
- Applications in real time
- Xilinx ISE 14.7 and Matlab for design and simulation
- Generation of Netlist
- Solution providing for real time problems
- Project Development Skills:
- Problem Analysis Skills
- Problem Solving Skills
- Logical Skills
- Designing Skills
- Testing Skills
- Debugging Skills
- Presentation Skills
- Thesis Writing Skills
Paper Publishing
