Dual Axis Solar Tracking System with Weather Sensor
Objective
The main objective of this project is to design a very precise solar tracker which moves along two axes, where in all four directions four LDRs are placed.
Abstract
Abstract:
Solar power is the fastest growing means of renewable energy. The project is designed and implemented using simple dual axis solar tracker system. In order to maximize energy generation from sun, it is necessary to introduce solar tracking systems into solar power systems. A dual-axis tracker can increase energy by tracking sun rays from switching solar panel in various directions. This solar panel can rotate in all directions. This dual axis solar tracker project can also be used to sense weather, and it will be displayed on LCD. This system is powered by Arduino, consists of DC motor, Motor Driver Board, rain drop sensor, temperature and humidity sensor and LCD.
Keywords: Arduino Uno, IR sensor, DHT11 sensor, LDR sensor, MQ3 sensor,RFID module GSM, LCD, power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

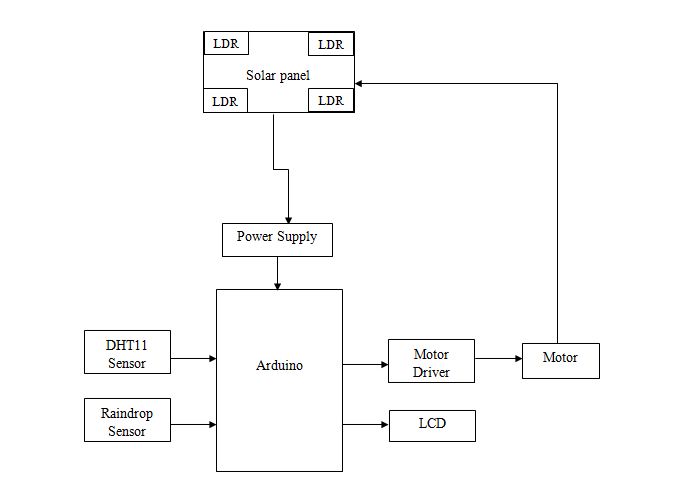

Block Diagram
Specifications
Hardware Requirements:
· Arduino Uno
· Raindrop sensor
· DHT11 sensor
· LDR
· Motor driver and DC motor
· Solar panel
· LCD
· Power supply
Software Requirements:
- Arduino IDE
Learning Outcomes
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of Raindrop sensor
- Interface Raindrop sensor with Arduino?
- Working of DHT11 sensor
- Interface DHT11 sensor with Arduino?
- Working of Motor driver and DC motor
- Interface Motor driver and DC motor with Arduino?
- Working of LDR sensor
- Interface LDR sensor with Arduino?
- Working of Rain drop sensor
- Interface Rain drop sensor with Arduino?
- Working of Motor driver and DC motor
- Interface Motor driver and DC motor with Arduino?
- Working of LCD
- Interface LCD with Arduino?
- Working of power supply
- Working of Solar panel
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
