Dry Hand Washing Machine by Fog Disinfection to Save Water
Objective
The main objective of this project is to develop a machine for dry hand washing by Fog disinfection to save water
Abstract
Since the start of
COVID pandemic it is been suggested to wash your hands multiple number of times
per day. But can we afford to waste such huge amount of water. The problems
that would be created by wastage of water would create a greater problem than
the pandemic itself. To help solve this system we here design a system that
provides hand washing while consuming over 95% less water. Our system goes
ahead another level to enable even more water saving using a fog based system.
The machine is integrated with a tank below it.
The tank is filled with water along with any safe herbal disinfectant liquid if required. When the user rubs soap on his/her hands and inserts it into the system, this automatically triggers a water fogging system that converts water in the tank to fog and drives it in the hand wash chamber.
Keywords: Arduino Uno, Relay, LCD, CPU fan, Keypad
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

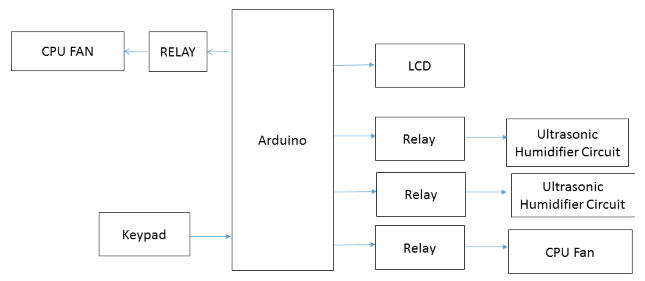

Block Diagram
Specifications
Hardware Requirements:
- Arduino uno
- Relay
- LCD
- Keypad
- CPU fan
- 4-Bit PCB Potentiometer
- 12V 1A Adapter
Software Requirements:
- Arduino IDE
- Fritzing
Learning Outcomes
- Arduino pin diagram and architecture.
- How to install Arduino IDE software
- Setting up and installation procedure for Arduino
- Introduction to Arduino IDE
- Basic coding in Arduino IDE
- Working of LCD
- Working of Relay
- How to interface LCD with arduino uno?
- How to interface CPU fan with Arduino uno?
- How to interface relay with arduino uno?
- How to interface keypad with arduino uno?
- How to interface Ultrasonic humidifier circuit with arduino uno?
- About Project Development Life Cycle:
- Planning and Requirement Gathering( software’s, Tools, Hardware components, etc.,)
- Schematic preparation
- Code development and debugging
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware and software tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
