Design of Smart Energy Meter using IOT
Objective
The main objective of this project is to reduce the theft of power with the help of energy meter which is integrated one in such a way that when our meter of energy is tampers then it can send the message alert to the user
Abstract
The main aim in this project is to reduce the theft of power with the help of energy meter which is integrated one in such a way that when our meter of energy is tampers then it can sending the message of alerting to the user which can use this project mostly they are concerned authorities with the help of modem of GSM which indicate the theft of power.
As there is increase of using the power that is electricity as the time pass day by day can lead it few attempts of the tampering of the meter which is the energy meter. So the way to identify the whole way which is routine one of tampering of the energy meter.
As this system of the whole project helps a lot in detecting of the tampering of the meter. So the whole system of this project is done by using Raspberry Pi. So in this project the modem of GSM is connected with Raspberry pi. The LCD is also connected with Raspberry Pi which can show the information.
Keywords: Raspberry Pi, Energy meter, LCD, GSM, Buzzer, Relay, Power supply
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

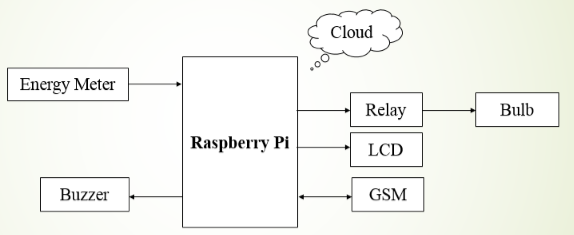

Block Diagram
Specifications
Hardware components:
- Raspberry pi
- Memory Card
- Energy meter buzzer
- LCD
- Relay
- GSM
- Power supply
- Python3 IDLE
- NOOBS OS
- Fritzing
- VNC Viewer
- Advanced IP Scanner
Learning Outcomes
- Raspberry pi pin diagram and architecture
- How to install NOOBS software
- Setting up and installation procedure for Raspberry Pi
- How to connect Raspberry Pi through VNC viewer
- Introduction to Python3 IDE
- Commands in Python
- Basic coding in Python
- Working on Energy meter
- How to interface Energy meter with Raspberry Pi?
- Working on Buzzer
- How to interface Buzzer with Raspberry Pi?
- Working on LCD
- How to interface LCD with Raspberry Pi?
- Working on GSM
- How to interface GSM with Raspberry Pi?
- Working on Relay
- How to interface Relay with Raspberry Pi?
- Working on power supply
- About Project Development Life Cycle:
- Planning and Requirement Gathering(Hardware components, etc.,)
- Hardware development and debugging
- Development of the Project and Output testing
- Practical exposure to:
- Hardware tools.
- Solution providing for real time problems.
- Working with team/ individual.
- Work on Creative ideas.
- Project development Skills
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Testing skills
- presentation skills
- Thesis writing skills
