DESIGN OF LOWER POWER CONSUMPTION APPROXIMATE 4 : 2 COMPRESSOR USING BOOTH MULTIPLIER BASED ON THE COMPENSATION CHARACTERISTICS

Project Code :TVMAFE551

Objective

Abstract

In this project, three novel approximate 4-2 compressors are proposed and utilized in 8-bit multipliers. Meanwhile, an error-correcting module (ECM) is presented to promote the error performance of approximate multiplier with the proposed 4-2 compressors on booth multiplier. Approximate computing is utilized in some digital signal processing applications which are inherent error tolerantcircuits. The approximate arithmetic blocks are utilized in them to optimize performance of these circuits. Multiplier is basic in computer arithmetic blocks. Moreover, the 4-2 compressors are widely employed in the parallel multipliers to accelerate the compression process of partial products. In this project, the number of the approximate 4-2 compressor’s outputs is innovatively reduced to one, which brings further improvements in the energy-efficiency. Compared with the exact 4-2 compressors, the simulation results indicate that the proposed approximate compressors UCAC1, UCAC2, UCAC3 achieve optimized delay, power and area, respectively. And the utilization of these proposed compressors in 8-bit radix-4 booth multipliers brings reduction of power consumption.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

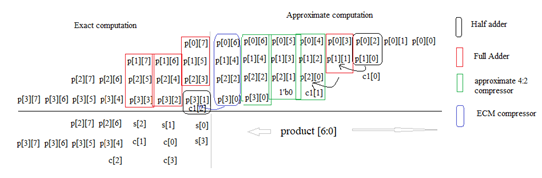

Block Diagram

Specifications

Software Requirements:

Xilinx Vivado Tool
HDL: Verilog

Hardware Requirements:

Microsoft® Windows XP
Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
512 MB RAM
100 MB of available disk space

Learning Outcomes

Basics of Digital Electronics
VLSI design Flow
Introduction to Verilog Coding
Different modeling styles in Verilog

Data Flow modeling
Structural modeling
Behavioral modeling
Mixed level modeling

Introduction to multiplier design
About Dadda multiplication
Knowledge on partial product generation and reduction
Knowledge on adders, compressors
About approximation computing
Applications in real time
Xilinx ISE 14.7/Xilinx Vivado for design and simulation
Generation of Netlist
Solution providing for real time problems
Project Development Skills:

Problem Analysis Skills
Problem Solving Skills
Logical Skills
Designing Skills
Testing Skills
Debugging Skills
Presentation Skills
Thesis Writing Skills
