Design of integral terminal sliding mode controller for the hybrid AC/DC microgrids involving renewables and energy storage systems
Objective
Main objective of this project is to maintain constant DC and AC bus voltage during islanding and grid-connected mode.
Abstract
In this project, the design of a centralized nonlinear controller based on the integral terminal and fast integral terminal sliding mode control for hybrid AC/DC micro-grid is proposed, involving renewable distributed generator as a primary source, Fuel Cell (FC) as a secondary source, and battery-ultra-capacitor as Hybrid Energy Storage System (HESS).
At first, the detailed mathematical model of the hybrid AC/DC micro-grid is established. Then, the controller is designed with the main objective to ensure the constant DC and AC bus voltage during islanding and grid-connected mode. During grid-connected mode, the controller is capable of providing frequency support to the utility grid. After that, the asymptotic stability of the hybrid AC/DC micro-grid is proved using Lyapunov stability criteria.
Then, the performance and robustness of the proposed control approach are tested by simulating it on MATLAB/Simulink, and the results are compared with sliding mode controller and Lyapunov redesign.
Keywords: Energy storage system, Fuel cell, Hybrid AC/DC micro grids, Integral terminal sliding mode, Nonlinear control, Wind energy.
NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

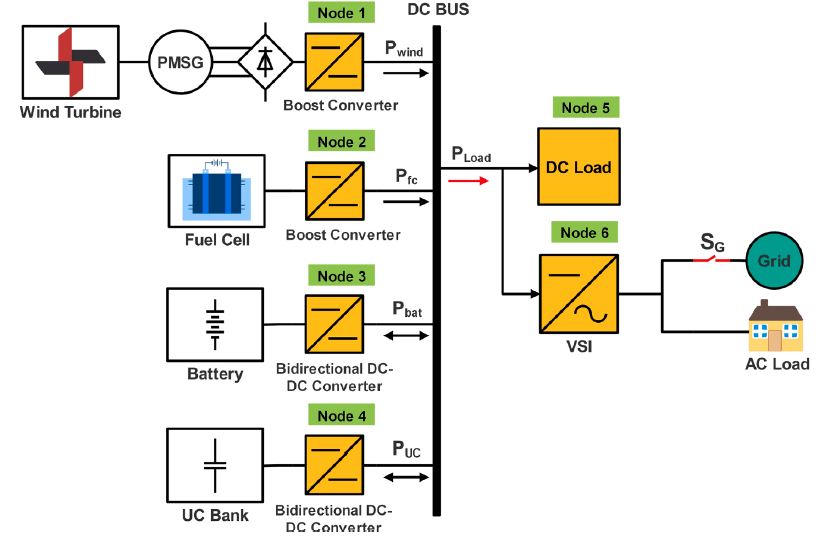

Block Diagram
Specifications
Software Configuration:
Operating System : Windows 7/8/10
Application Software : Matlab/Simulink
Hardware Configuration:
RAM : 8 GB / 4 GB (Min)
Processor : I3 / I5(Mostly prefer)
Learning Outcomes
- Introduction to Matlab/Simulink
- What is EISPACK & LINPACK
- How to start with MATLAB
- About Matlab language
- About tools & libraries
- Application of Matlab/Simulink
- About Matlab desktop
- Features of Matlab/Simulink
- Basics on Matlab/Simulink
- Introduction to Power Distribution Systems
- Introduction to Wind Energy
- Introduction to proton exchange membrane (PEM) fuel cell (FC)
- Introduction to Types of Batteries
- Introduction to Ultra Capacitor.
- Introduction to Hybrid energy Storage system.
- Introduction to Hybrid AC/DC micro-grids
- Introduction to power electronic devices
- Introduction to Sliding Mode Controller.
- Introduction to Lyapunov stability criteria
- Introduction to Pulse Width Modulation (PWM),
- Design of PLL.
- How to implement VSC control?
- We can learn about the Permanent Magnet Synchronous Generator
- Introduction to open loop and closed loop control system
- Introduction to Boost Converter.
- Introduction to Voltage Source Converters (VSC)
- We can learn about Bi-directional DC-DC converters
- We can learn about PI Controllers
- Project Development Skills:
- Problem analyzing skills
- Problem solving skills
- Creativity and imaginary skills
- Programming skills
- Deployment
- Testing skills
- Debugging skills
- Project presentation skills
- Thesis writing skills
