Design of Hamming Code Encoding and Decoding Circuit Using Transmission Gate Logic

Also Available Domains Transistor Logic|Tanner EDA

Project Code :TVMAFE353

Objective

In this paper, the Hamming code encoder and decoder circuit is implemented using transmission gate logic. The architecture is simulated with different technologies (16nm, 22nm, 32nm, and 45nm) with the help of TANNER EDA Tool for the study of total power dissipation of the circuit.

Abstract

In digital communication, errors are introduced during the transmission of data from the transmitter to receiver due to noise or environmental interference . These errors can become a serious problem for achieving accuracy and performance of the system.. Therefore, the reliability of data transmission is required to be improved. To improve the reliability, it is essential to detect and correct the error. In this paper, the hamming code algorithm is implemented in Spartan 3A family XC3S700A FPGA device using VHDL coding technique. The synthesis and simulation results are carried out using Xilinx ISE 14.7.

NOTE: Without the concern of our team, please don't submit to the college. This Abstract varies based on student requirements.

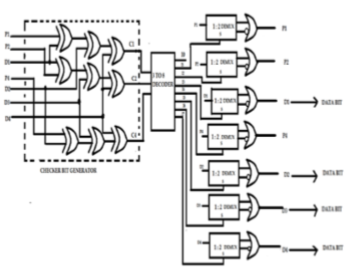

Block Diagram

Specifications

Software Requirements:

Tanner EDA
Technology files:180nm

Hardware Requirements:

Microsoft® Windows XP
Intel® Pentium® 4 processor or Pentium 4 equivalent with SSE support
512 MB RAM
100 MB of available disk space

Learning Outcomes

Introduction Communication systems
Error correction codes
Significance of error correction codes in communication systems
Transistors & its applications
Types of Transistors

Logic Gates using Transistors
Pull Up and Pull Down networks
Importance of Transistors

MOS Fundamentals
NMOS/PMOS/CMOS Technologies
How to design circuits using Transistor logic?
Transistor level design for Error correction codes.
How to design low power, high speed area efficient transistor level circuits?
Drawbacks in CMOS technology
Scope of Error Correction Codes in today’s world
Applications in real time
Tanner EDA tool for design and simulation
Solution providing for real time problems
Project Development Skills:

Problem Analysis Skills
Problem Solving Skills
Logical Skills
Designing Skills
Testing Skills
Debugging Skills
Presentation skills
Thesis Writing Skills
